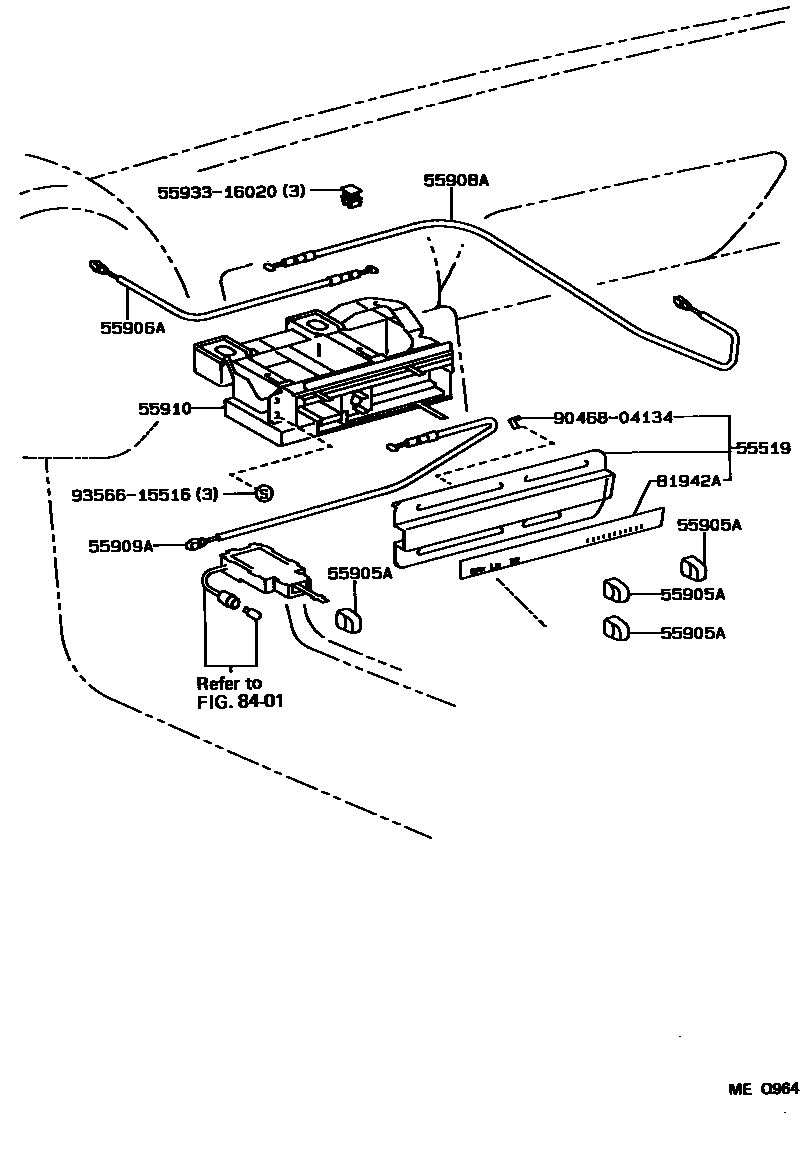

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55519PLATE, HEATER CONTROL NAME

main55519-16040-01iEL42199009-199208

BLACK,TRIM2#

sub55519-16041

main55519-16040-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub55519-16041

main55519-16041-22iEL42199208-199409

BLACK,TRIM2#

sub55519-16041

main55519-16041-W4iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub55519-16041

main55519-16050-01iEL42..USA199009-199208

W(AIR CONDITIONER),BLACK,TRIM2#

sub55519-16041

main55519-16050-04iEL42..(DLX,LE)..USA199009-199208

W(AIR CONDITIONER),GRAYISH BLUE,TRIM8#

sub55519-16041

55905AKNOB, HEATER CONTROL

main55905-89115iEL42199009-199208

LEVER

main55905-89115iEL42199208-199409

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16080iEL42199009-199409

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16080iEL42199009-199409

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16080iEL42199009-199409

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16160iEL42199009-199208

sub55910-16161

main55910-16161iEL42199208-199409

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16150-01iEL42199009-199208

BLACK,TRIM2#

sub81942-16151

main81942-16150-04iEL42..DLX,LE199009-199208

GRAISH BLUE,TRIM8#

sub81942-16151

main81942-16151-C0iEL42199208-199409

BLACK,TRIM2#

sub81942-16151

main81942-16151-J0iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub81942-16151

8401

5593316020GUIDE, LEVER, NO.2

main55933-16020

9046804134

main90468-04134

9356615516

main93566-15516

11 parts on this diagram · 2 diagrams in section
