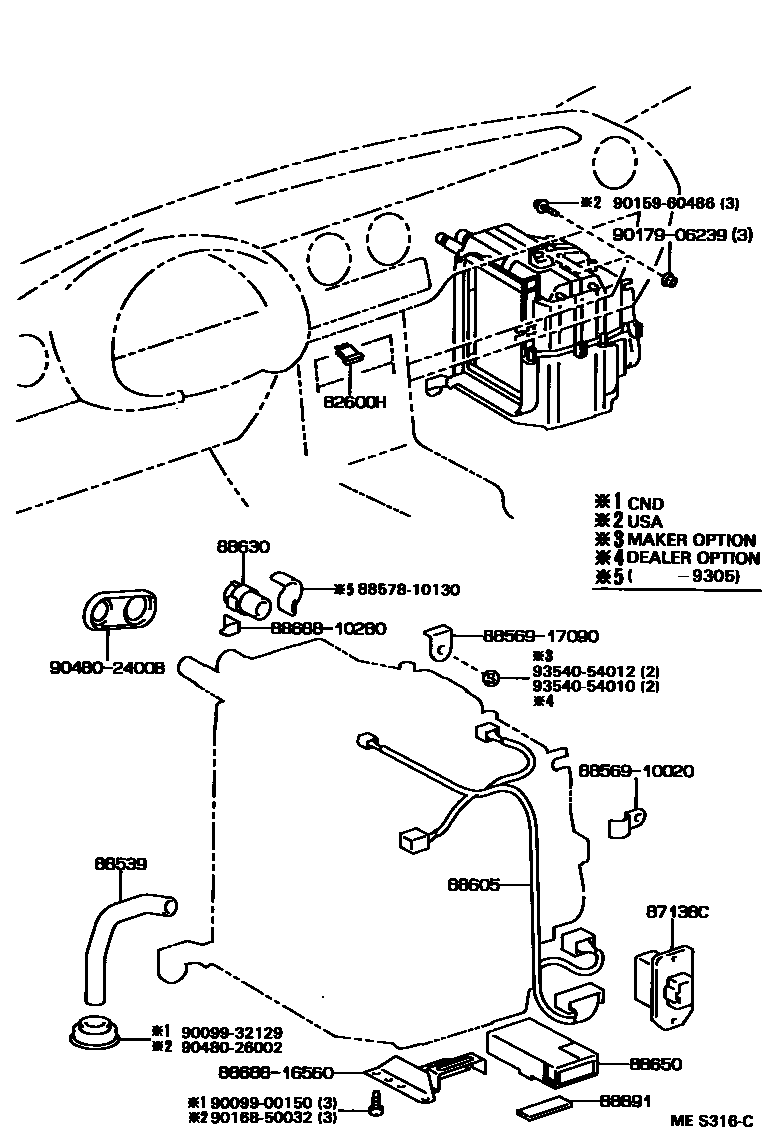

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1PUERTORICO SPEC

82600HFUSE, FUSE BLOCK

main90982-09002iEL42..3FC..USA199009-199409

10A

87138CRESISTOR, BLOWER

main87138-16130iEL42..USA199009-199409

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10100iEL42..USA;EL42..2DS..CND199009-199409

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1G290iEL42..CND199009-199208

PUERTORICO SPEC & W(POWER STEERING) OR W(POWER STEERING)

main88605-1G290iEL42..USA199009-199208

W(POWER STEERING)

main88605-1G291iEL42..USA;EL42..2DS..CND199208-199308

main88605-1G292iEL42..3FC..USA199308-199409

main88605-1G300iEL42199009-199208

88630RELAY ASSY, COOLER

main88630-95702iEL42..USA199009-199409

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16400iEL42..5F..DLX..USA;EL42..(3FC,4F)..USA199009-199409

W(POWER STEERING)

main88650-16410iEL42199009-199204

sub88650-16411

main88650-16411iEL42..5F..DLX..USA;EL42..(3FC,4F)..USA199204-199409

88891PACKING (FOR COOLER)

main88578-10090iEL42..USA199009-199409

main88578-16190iEL42..CND199009-199409

sub88578-10130

8856910020CLAMP (FOR COOLER RELAY)

main88569-10020

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

8857810130PAKING, COOLER AIR DUCT

main88578-10130

8868810280BRACKET, COOLER DIAPHRAGM

main88688-10280

8868816560BRACKET, COOLER DIAPHRAGM

main88688-16560

9009900150

main90099-00150

9009932129

main90099-32129

9015960486

main90159-60486

9016850032

main90168-50032

9017906239

main90179-06239

9048024008

main90480-24008

9048026002

main90480-26002

9354054010

main93540-54010

9354054012

main93540-54012

21 parts on this diagram · 3 diagrams in section
