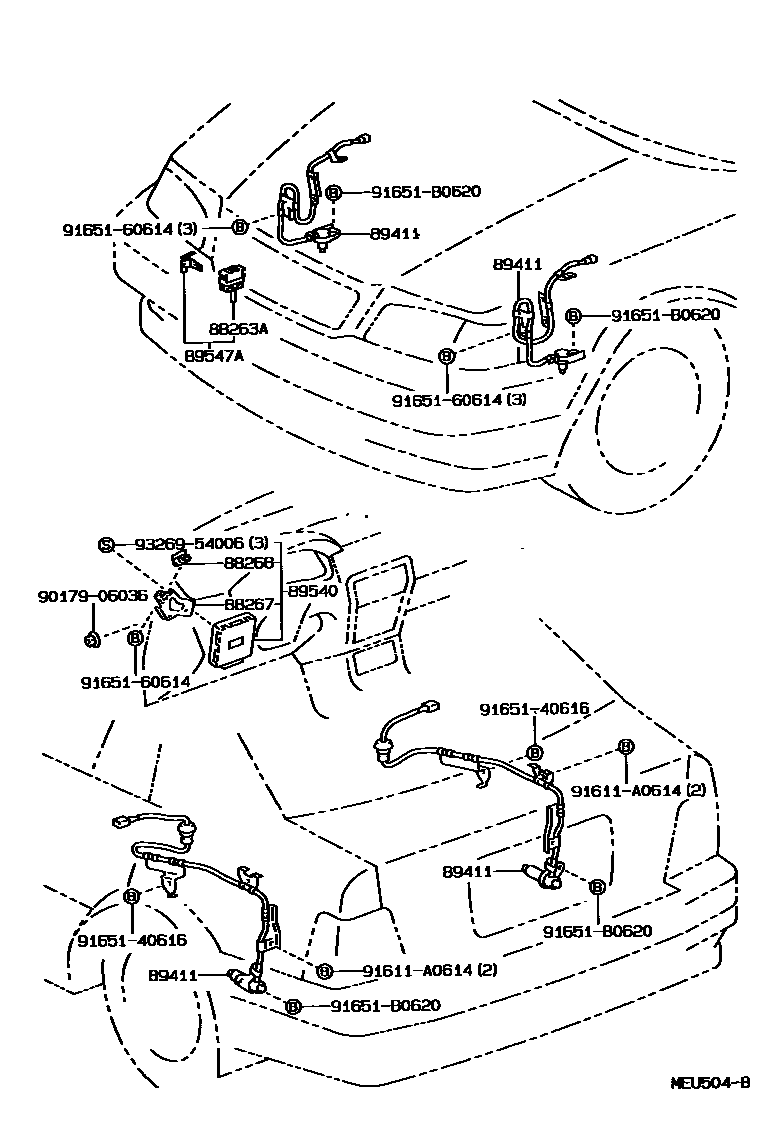

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-12090iEL42199208-199310

main88263-16010iEL42199310-199409

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-16030iEL42199208-199409

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-16030iEL42199208-199409

89411SENSOR, SPEED

main89542-16010iEL42199208-199409

FR AXLE,RH

main89543-16010iEL42199208-199409

FR AXLE,LH

main89545-16020iEL42199208-199409

REAR AXLE,RH

main89546-16020iEL42199208-199409

REAR AXLE,LH

89540COMPUTER ASSY, SKID CONTROL

main89540-16040iEL42199208-199409

sub89540-16090

89547ARELAY, SKID CONTROL W/BRACKET

main89547-10010iEL42199208-199310

9017906036

main90179-06036

91611A0614

main91611-A0614

9165140616

main91651-40616

9165160614

main91651-60614

91651B0620

main91651-B0620

9326954006

main93269-54006

12 parts on this diagram · 1 diagram in section
