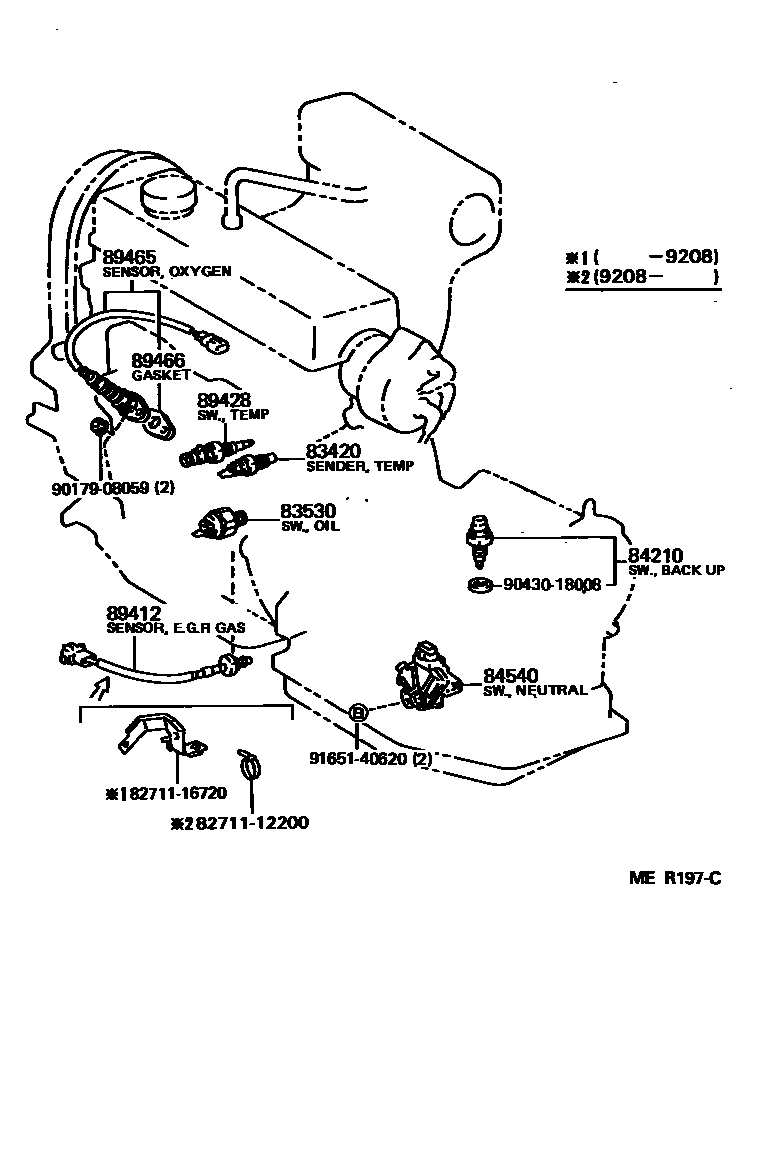

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL42199009-199409

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL42199208-199409

sub83530-30090

main83530-30080iEL42199009-199208

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL42..MTM199009-199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEL42..3FC199009-199208

main84540-16040iEL42..3FC199208-199409

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-16020iEL42..USA199009-199409

CALIFORNIA SPEC

sub89412-16010

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL42199208-199409

main89428-20060iEL42199009-199208

89465SENSOR, OXYGEN

main89465-19405iEL42199009-199409

sub89465-19485

89466GASKET, OXYGEN SENSOR

main89466-20020iEL42199009-199409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271116720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16720

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

13 parts on this diagram · 8 diagrams in section
