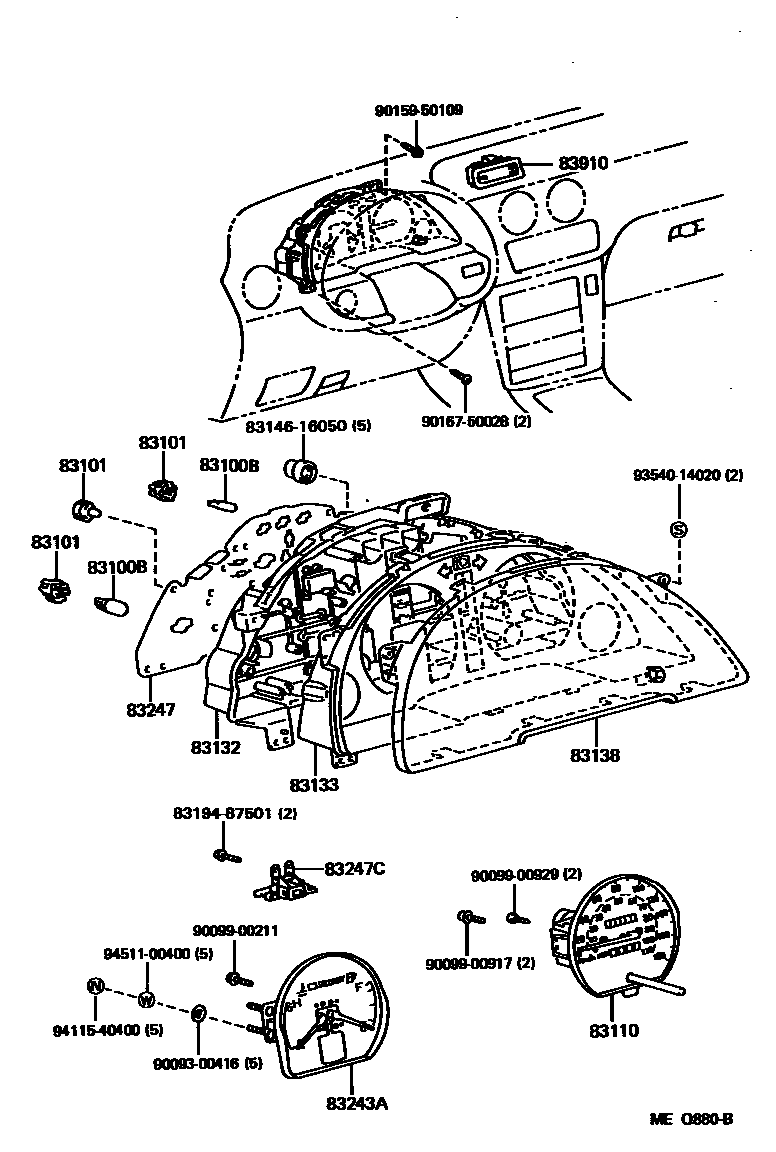

METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iEL42..DLX,LE199009-199208

12V 1.4W,W(SOCKET)

main83109-24020×4iEL42199009-199409

12V3.4W W(GREEN CAP)

main83109-30070iEL42..LE..USA199208-199409

14V 2.0W,W/O SOCKET

main83119-32010iEL42..LE..CND199009-199409

14V 3.0W

main90981-11018×9iEL42..STD199009-199208

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iEL42..LE;EL42..2DS..5F..DLX..CND199108-199208

W(TACHOMETER),12V 3.4W,AMBER CAP

main83101-14040×9iEL42..LE..USA199208-199409

12V 1.4W,14V 2.0W

main83101-32020iEL42..4DS..DLX..CND199208-199409

W(TACHOMETER),14V 3.4W,GREEN CAP

83110SPEEDOMETER ASSY

main83110-1G260iEL42..STD..USA199009-199208

main83110-1G261iEL42..STD..USA199208-199409

main83110-1G270iEL42..(DLX,LE)..USA199009-199208

main83110-1G271iEL42..(DLX,LE)..USA199208-199409

main83110-1G280iEL42..STD..CND199009-199409

main83110-1G290iEL42..(DLX,LE)..CND199009-199409

main83110-1G320iEL42..5F..LE..USA199009-199208

W(TACHOMETER)

main83110-1G321iEL42..LE..USA199208-199409

W(TACHOMETER)

main83110-1G330iEL42..5F..LE..CND199009-199108

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-1G230iEL42..LE..USA199009-199208

W(TACHOMETER)

sub83132-1G570

main83132-1G250iEL42..LE..CND199009-199208

W(TACHOMETER)

main83132-1G290iEL42..STD..USA199009-199208

main83132-1G310iEL42..(DLX,LE)..USA199009-199208

main83132-1G330iEL42..STD..CND199009-199208

main83132-1G350iEL42..DLX..CND199009-199208

main83132-1G370iEL42..LE..CND199009-199208

main83132-1G590iEL42..2DS..5F..DLX..CND199108-199208

W(TACHOMETER)

main83132-1G650iEL42..USA199208-199409

main83132-1G670iEL42..LE..USA199208-199409

W(TACHOMETER)

main83132-1G690iEL42..(DLX,STD)..CND199208-199409

main83132-1G710iEL42..LE..CND199208-199409

W(TACHOMETER)

main83132-1G730iEL42..4DS..DLX..CND199208-199409

CHILE SPEC

main83132-1G870iEL42..2DS..5F..CND199208-199308

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-1G210iEL42..LE..USA199009-199108

W(TACHOMETER)

main83133-1G230iEL42..LE..CND199009-199409

W(TACHOMETER)

main83133-1G250iEL42199009-199208

main83133-1G290iEL42199208-199409

83138GLASS, SPEEDOMETER

main83138-16570iEL42..DLX,LE199009-199409

main83138-16590iEL42..STD199009-199409

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1G010iEL42..USA199009-199409

main83243-1G030iEL42..USA199009-199409

PUERTORICO SPEC

main83243-1G050iEL42..(DLX,STD)..CND199009-199409

main83243-1G070iEL42..LE..CND199009-199409

main83243-1G110iEL42..LE199009-199108

W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83149-16150iEL42..STD..USA199009-199208

main83149-16170iEL42..(DLX,LE)..USA199009-199208

main83149-16190iEL42..STD..USA199009-199208

PUERTORICO SPEC

main83149-16210iEL42..(DLX,LE)..USA199009-199208

PUERTORICO SPEC

main83149-16230iEL42..STD..CND199009-199208

main83149-16250iEL42..DLX..CND199009-199208

main83149-16270iEL42..LE..CND199009-199208

main83149-16310iEL42..LE..USA;EL42..2DS..5F..DLX..CND199108-199208

W(TACHOMETER)

sub83149-16470

main83149-16350iEL42..LE..CND199009-199208

W(TACHOMETER)

sub83149-16470

main83149-16490iEL42..USA199208-199409

main83149-16510iEL42..USA199208-199409

PUERTORICO SPEC

main83149-16530iEL42..(DLX,STD)..CND199208-199409

main83149-16550iEL42..4DS..DLX..CND199208-199409

CHILE SPEC

main83149-16590iEL42..LE..USA199208-199409

W(TACHOMETER)

main83149-16610iEL42..LE..CND199208-199409

W(TACHOMETER)

main83149-1G410iEL42..5F..DLX..CND199308-199409

W(TACHOMETER)

83247CPLATE, MATER CIRCUIT, NO.3

main83149-16410iEL42..USA199009-199409

PUERTORICO SPEC

83910CLOCK ASSY

main83910-16170-01iEL42..LE;EL42..2DS..DLX199108-199208

BLACK,TRIM2#

main83910-16170-04iEL42..LE;EL42..2DS..DLX..USA199009-199108

GRAISH BLUE,TRIM8#

main83910-16170-22iEL42..LE..CND;EL42..(DLX,LE)..USA;EL42..2DS..DLX..CND199208-199308

BLACK,TRIM2#

main83910-16170-W4iEL42..LE..CND;EL42..(DLX,LE)..USA;EL42..2DS..DLX..CND199208-199308

EISEN BLUE,TRIM8#

8314616050GROMMET, METER GLASS

main83146-16050

8319487501

main83194-87501

9009300416

main90093-00416

9009900211

main90099-00211

9009900917

main90099-00917

9009900929

main90099-00929

9015950109

main90159-50109

9016750028

main90167-50028

9354014020

main93540-14020

9411540400

main94115-40400

9451100400

main94511-00400

21 parts on this diagram · 3 diagrams in section
