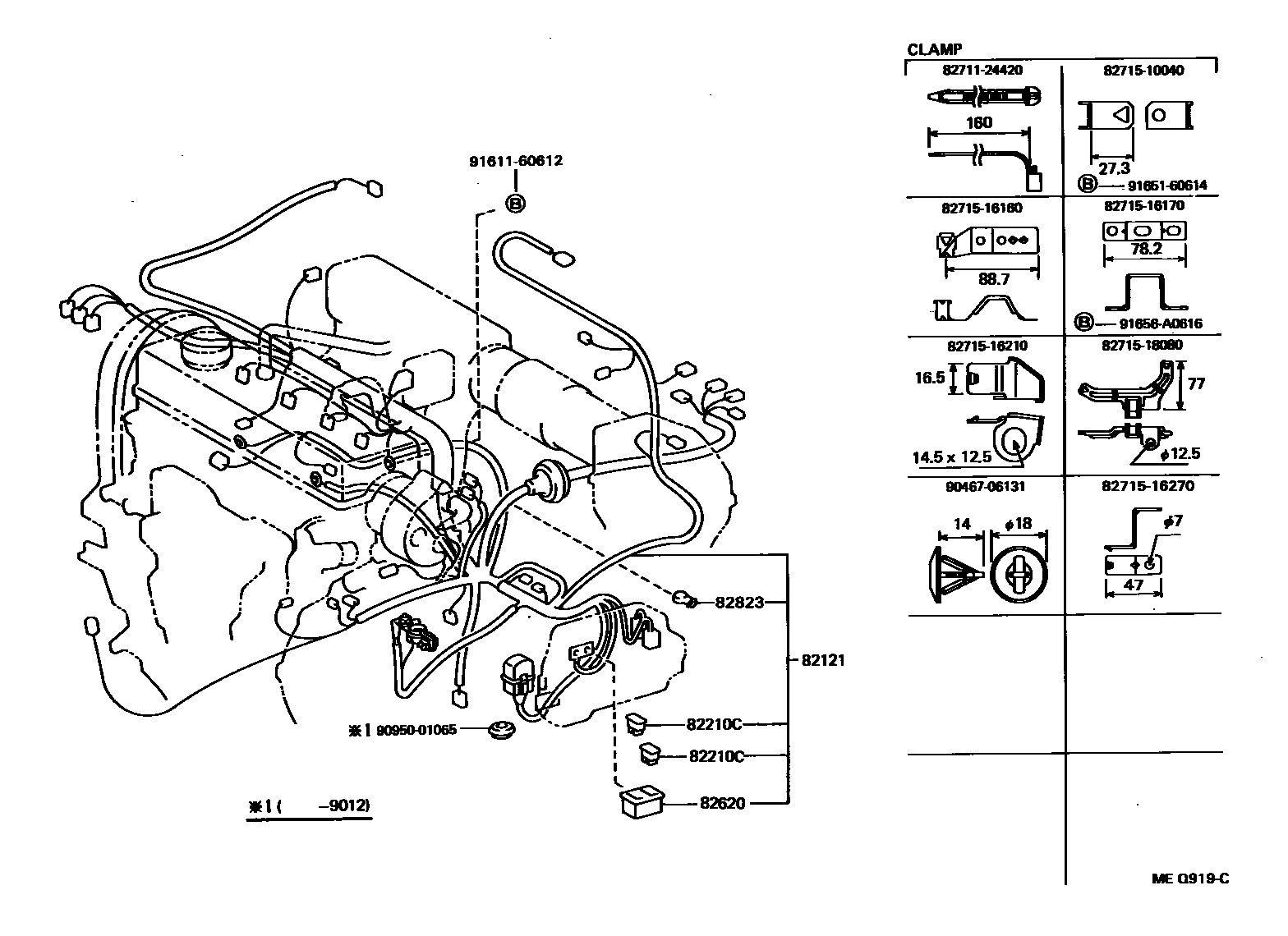

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82121WIRE, ENGINE

main82121-16600iEL42..MTM199009-199208

main82121-16630iEL42..3FC199009-199208

main82121-16640iEL42..MTM..USA199009-199208

CALIFORNIA SPEC

main82121-16650iEL42..3FC..USA199009-199208

CALIFORNIA SPEC

main82121-16770iEL42..MTM199208-199409

main82121-16780iEL42..3FC199208-199409

main82121-16810iEL42..MTM..USA199208-199409

CALIFORNIA SPEC

main82121-16820iEL42..3FC..USA199208-199409

CALIFORNIA SPEC

82210CFUSIBLE LINK

main90982-08188iEL42..CND199208-199409

30A,TERM.:FEMALE,PNK

main90982-08190iEL42199208-199409

60A,TERM.:FEMALE,YEL

main90982-08228iEL42199009-199409

50A,TERM.:MALE,RED

main90982-08246iEL42199009-199409

100A,TERM.:MALE,BLUE

82620BLOCK ASSY, FUSIBLE LINK

main82620-30030iEL42199009-199409

82823CAP, TERMINAL, NO.1

main82823-20070iEL42199208-199409

main82823-22060iEL42199009-199208

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8271510040BRACKET,WIRING HARNESS CLAMP

main82715-10040

8271516160BRACKET,WIRING HARNESS CLAMP

main82715-16160

8271516170BRACKET,WIRING HARNESS CLAMP

main82715-16170

8271516210BRACKET,WIRING HARNESS CLAMP

main82715-16210

8271516270BRACKET,WIRING HARNESS CLAMP

main82715-16270

8271518080BRACKET,WIRING HARNESS CLAMP

main82715-18080

9046706131

main90467-06131

9095001065

main90950-01065

9161160612

main91611-60612

9165160614

main91651-60614

91656A0616

main91656-A0616

16 parts on this diagram · 7 diagrams in section
