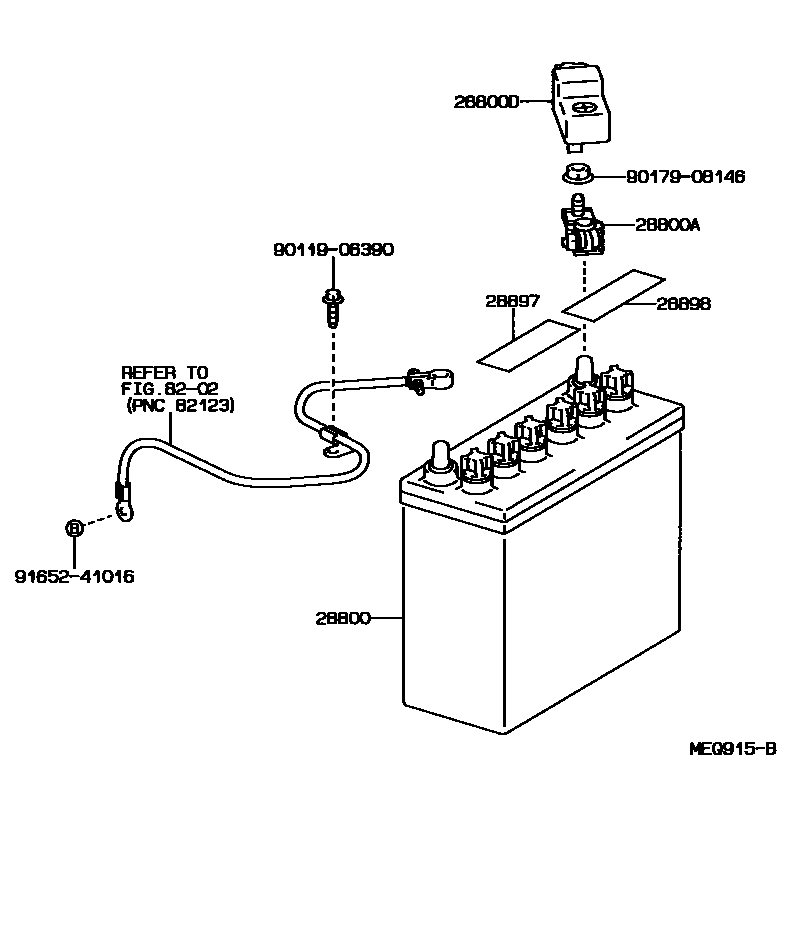

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030i3EE..EL42..USA199009-199409

50D20R

sub28800-12060

main28800-15010i3EE..EL42..USA199009-199409

55D23R

sub28800-14010

main28800-33101i3EE..EL42..USA199009-199409

32C24R

sub28800-33090

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i3EE..EL42199009-199409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16050i3EE..EL42199208-199409

28897PLATE, BATTERY CAUTION

main28897-26010i3EE..EL42..USA199009-199409

main28897-38010i3EE..EL42..CND199009-199409

28898PLATE, BATTERY

main28898-26010i3EE..EL42..USA199009-199409

8202

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

9 parts on this diagram · 1 diagram in section
