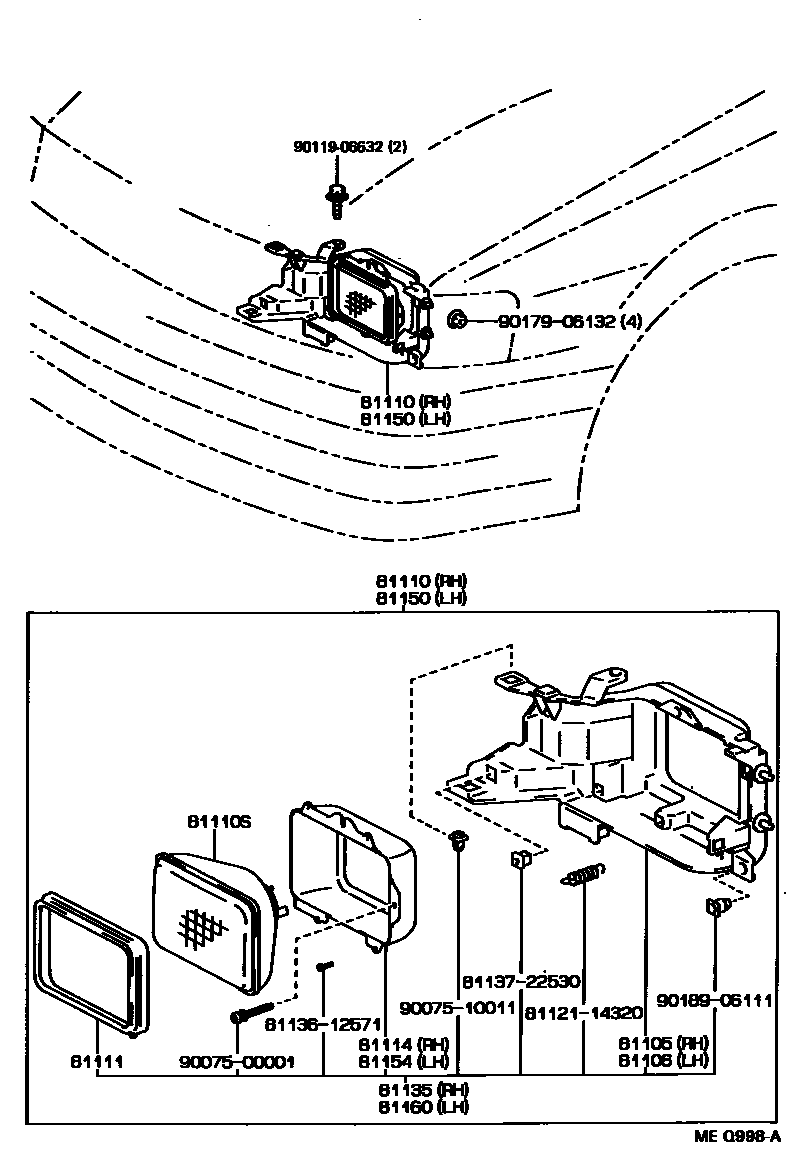

HEADLAMP

0001 1 0002 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-16500iEL42..STD199009-199409

main81105-16510iEL42..DLX,LE199009-199409

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-16500iEL42..STD199009-199409

main81106-16510iEL42..DLX,LE199009-199409

81110HEADLAMP ASSY, RH

main81110-16500iEL42..STD199009-199409

sub81110-16501

main81110-16510iEL42..DLX,LE199009-199409

81110SSEALED BEAM UNIT, NO.1

main90981-04039iEL42..STD199009-199409

12V 65/45W,*HAL,*WH

81111RING, SEALED BEAM RETAINING

main81111-20360iEL42..STD199009-199409

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-22391iEL42..STD199009-199409

81135UNIT ASSY, HEADLAMP, RH

main81130-16500iEL42..STD199009-199409

main81130-16510iEL42..DLX,LE199009-199409

81150HEADLAMP ASSY, LH

main81150-16500iEL42..STD199009-199409

sub81150-16501

main81150-16510iEL42..DLX,LE199009-199409

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-22391iEL42..STD199009-199409

81160HEADLAMP SUB-ASSY, LH

main81160-16500iEL42..STD199009-199409

8112114320SPRING, HEADLAMP TENSION

main81121-14320

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007500001

main90075-00001

9007510011

main90075-10011

9011906632

main90119-06632

9017906132

main90179-06132

9018906111

main90189-06111

18 parts on this diagram · 2 diagrams in section
