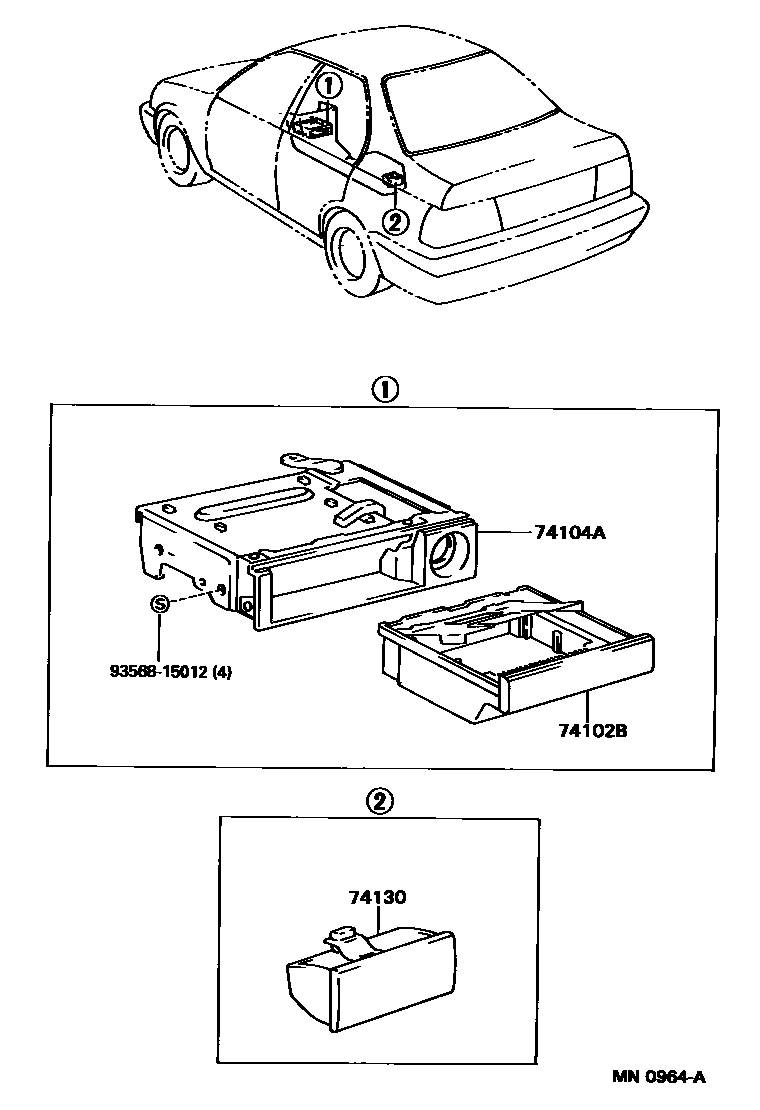

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-16040iEL42199009-199409

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-16070iEL42199009-199409

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-01iEL42..CND199009-199208

BLACK,TRIM2#

sub74109-20080

main74109-20080-22iEL42..CND199208-199409

BLACK,TRIM2#

sub74109-20080

main74109-20080-24iEL42..(DLX,LE)..CND199009-199208

GRAYISH BLUE,TRIM8#

sub74109-20080

main74109-20080-W4iEL42..(DLX,LE)..CND199208-199409

EISEN BLUE,TRIM8#

sub74109-20080

9356815012

main93568-15012

4 parts on this diagram · 1 diagram in section
