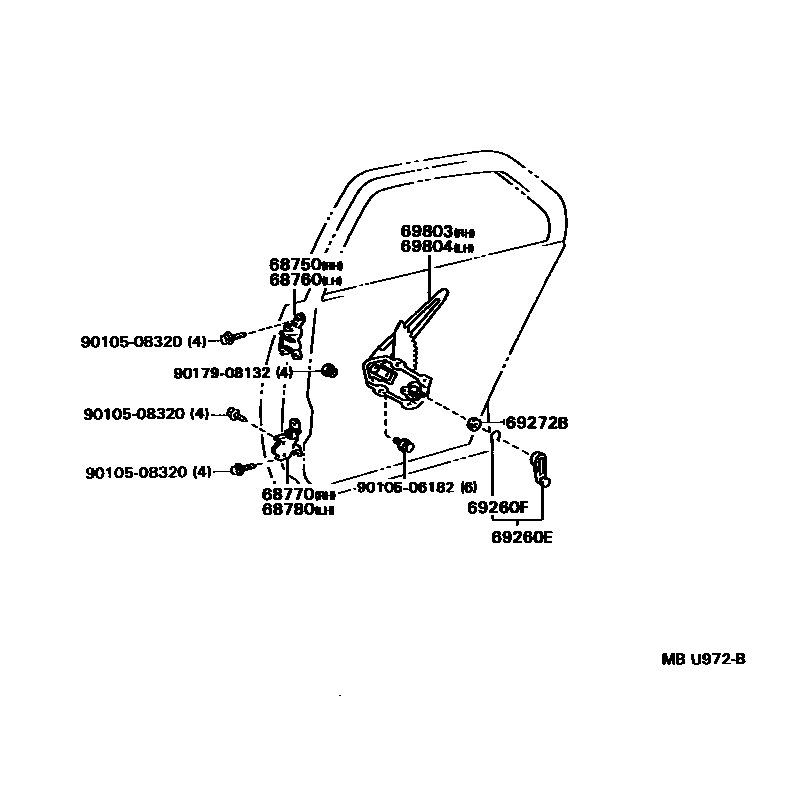

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-16040iEL42..4DS199009-199308

sub68750-16050

main68750-16050iEL42..4DS199208-199409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-16040iEL42..4DS199009-199308

sub68760-16050

main68760-16050iEL42..4DS199208-199409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12060iEL42..4DS199009-199308

sub68770-16030

main68770-16030iEL42..4DS199208-199409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12050iEL42..4DS199009-199308

sub68780-16030

main68780-16030iEL42..4DS199208-199409

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-16010-01iEL42..4DS199009-199208

BLACK,TRIM2#

sub69260-16010

main69260-16010-04iEL42..4DS199009-199208

GRAYISH BLUE,TRIM8#

sub69260-16010

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iEL42..4DS199009-199409

sub90520-01274

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010iEL42..4DS199212-199409

sub69268-20020

main69268-20020iEL42..4DS199009-199208

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-16050iEL42..4DS199009-199409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-16050iEL42..4DS199009-199409

9010506182

main90105-06182

9010508320

main90105-08320

9017908132

main90179-08132

12 parts on this diagram · 1 diagram in section
