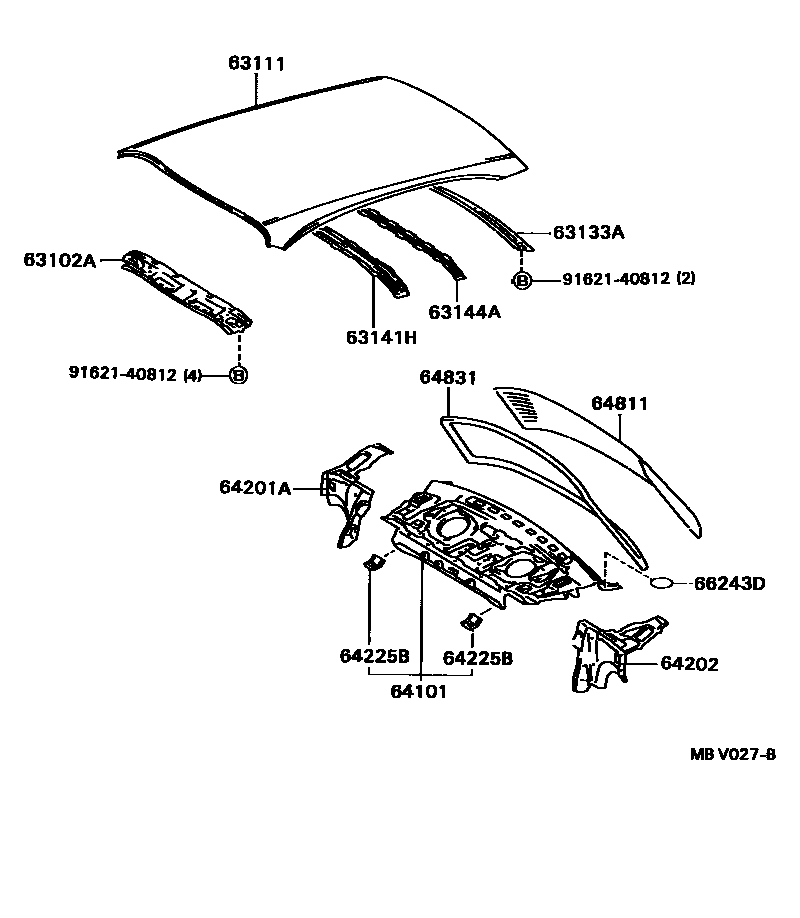

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-16060iEL42199009-199409

63111PANEL, ROOF

main63111-16200iEL42199009-199409

63133AFRAME, BACK WINDOW, UPPER

main63133-16040iEL42199009-199409

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16080iEL42199009-199409

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-16030iEL42199009-199409

64101PANEL SUB-ASSY, UPPER BACK

main64101-16090iEL42..STD..CND;EL42..(DLX,STD)..USA199208-199409

sub64101-16900

sub64173-16010

main64101-16100iEL42..LE..USA;EL42..(DLX,LE)..CND199208-199409

W(SPLIT REAR SEAT)

sub64101-16900

sub64173-16010

main64101-16100iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

sub64101-16900

sub64173-16010

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-16010iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199409

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-16010iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199409

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-16030iEL42..2DS..USA;EL42..STD..CND199009-199409

64811GLASS, BACK WINDOW

main64811-16250iEL42..(DLX,STD)..USA199009-199409

*TEM,T=3.5,CLEAR

main64811-16270iEL42..LE..USA199009-199409

*EHTT,T=3.5,BLUE,COLD AREA PACKAGE

main64811-16270iEL42..LE..CND199009-199409

*EHTT,T=3.5,BLUE

main64811-16300iEL42..(DLX,STD)..CND199009-199409

*EHT,T=3.5,CLEAR,COLD AREA PACKAGE

main64811-16300iEL42..(DLX,STD)..USA199009-199409

*EHT,T=3.5,CLEAR

main64811-16310iEL42..DLX..USA199108-199409

*TT,T=3.5,BLUE

main64811-16320iEL42..(DLX,STD)..USA199009-199409

*EHT,T=3.5,CLEAR,W(REAR WINDOW DEFFOGGER(100W))

main64811-16320iEL42..4DS..DLX..CND199208-199409

*EHT,T=3.5,CLEAR,CHILE SPEC

main64811-16330iEL42..DLX..USA199108-199409

*EHTT,T=3.5,BLUE,W(REAR WINDOW DEFFOGGER(100W))

main64811-16330iEL42..LE..USA199009-199409

*EHTT,T=3.5,BLUE

main64811-16330iEL42..LE..CND199208-199409

*EHTT,T=3.5,BLUE,CHILE SPEC

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-16050iEL42199009-199409

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010iEL42199009-199409

9162140812

main91621-40812

13 parts on this diagram · 1 diagram in section
