MAT & CARPET

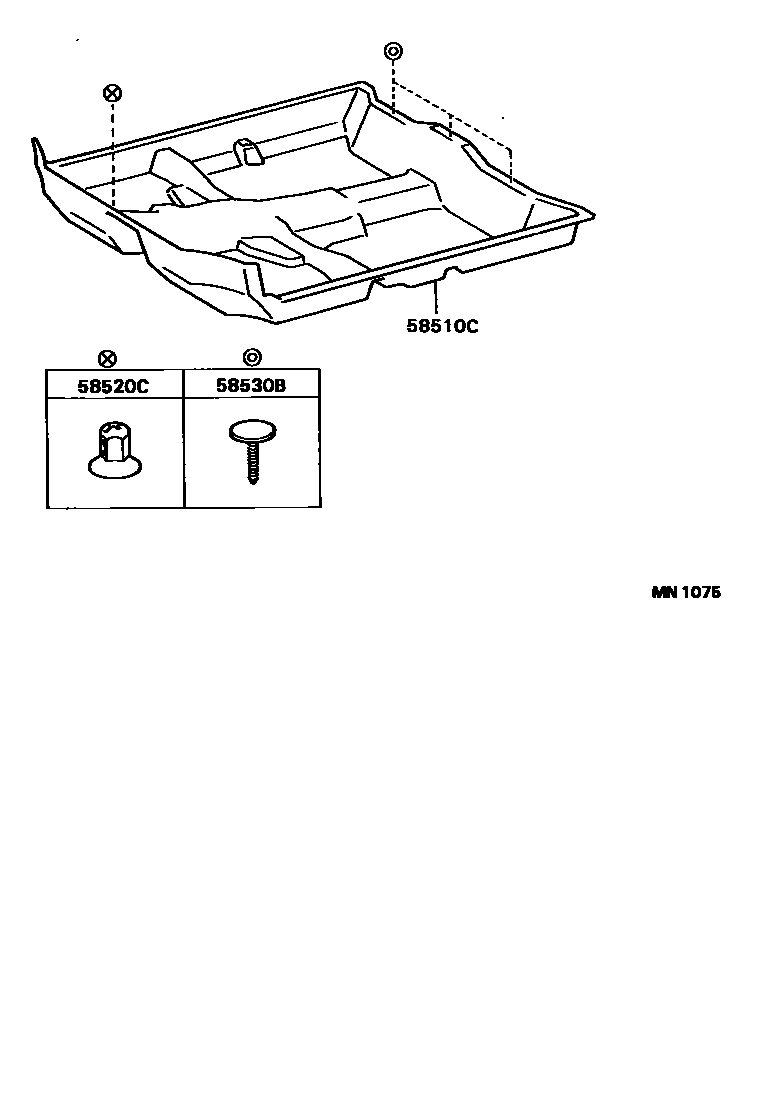

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-1G350-01i199009-199208
BLACK,TRIM2#
main58510-1G351-22i199208-199409
BLACK,TRIM2#
main58510-1G360-01i199009-199208
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G361-22i199208-199409
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G490-01i199009-199208
BLACK,TRIM2#
main58510-1G490-04i199009-199208
GRAYISH BLUE,TRIM8#
main58510-1G491-22i199208-199308
BLACK,TRIM2#
main58510-1G491-W4i199208-199308
EISEN BLUE,TRIM8#
main58510-1G492-C0i199308-199409
BLACK,TRIM2#
main58510-1G492-J0i199308-199409
EISEN BLUE,TRIM8#
main58510-1G500-01i199009-199208
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G500-04i199009-199208
COLD AREA PACKAGE & W(BACK DOOR & TRUNK OPENER),GRAYISH BLUE,TRIM8#
main58510-1G501-22i199208-199308
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G501-W4i199208-199308
COLD AREA PACKAGE,EISEN BLUE,TRIM8#
main58510-1G502-C0i199308-199409
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G502-J0i199308-199409
COLD AREA PACKAGE,EISEN BLUE,TRIM8#
main58510-1G510-01i199009-199208
W(BACK DOOR & TRUNK OPENER),BLACK,TRIM2#
main58510-1G510-04i199009-199208
GRAYISH BLUE,TRIM8#
main58510-1G511-22i199208-199308
W(BACK DOOR & TRUNK OPENER),BLACK,TRIM2#
main58510-1G511-W4i199208-199308
EISEN BLUE,TRIM8#
main58510-1G512-C0i199308-199409
W(BACK DOOR & TRUNK OPENER),BLACK,TRIM2#
main58510-1G512-J0i199308-199409
EISEN BLUE,TRIM8#
main58510-1G551-22i199208-199308
CHILE SPEC,BLACK,TRIM2#
main58510-1G551-W4i199208-199308
CHILE SPEC,EISEN BLUE,TRIM8#
main58510-1G552-C0i199308-199409
CHILE SPEC,BLACK,TRIM2#
sub58510-1G542
main58510-1G552-J0i199308-199409
CHILE SPEC,EISEN BLUE,TRIM8#
sub58510-1G542
main58510-1G580-01i199009-199208
BLACK,TRIM2#
main58510-1G581-22i199208-199409
BLACK,TRIM2#
main58510-1G590-01i199009-199208
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G590-04i199009-199208
COLD AREA PACKAGE,GRAYISH BLUE,TRIM8#
main58510-1G591-22i199208-199308
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G591-W4i199208-199308
COLD AREA PACKAGE,EISEN BLUE,TRIM8#
main58510-1G592-C0i199308-199409
COLD AREA PACKAGE,BLACK,TRIM2#
main58510-1G592-J0i199308-199409
COLD AREA PACKAGE,EISEN BLUE,TRIM8#
main58510-1G600-01i199009-199208
BLACK,TRIM2#
main58510-1G600-04i199009-199208
GRAYISH BLUE,TRIM8#
main58510-1G601-22i199208-199308
BLACK,TRIM2#
main58510-1G601-W4i199208-199308
EISEN BLUE,TRIM8#
main58510-1G602-C0i199308-199409
BLACK,TRIM2#
main58510-1G602-J0i199308-199409
EISEN BLUE,TRIM8#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-05051-01i199009-199208
BLACK,TRIM2#
main90467-05051-22i199208-199409
BLACK,TRIM2#
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-06037-01×3i199009-199208
BLACK,TRIM2#
main90467-06037-C0×3i199208-199212
BLACK,TRIM2#
main90467-06166-C0×3i199212-199409
BLACK,TRIM2#

3 parts on this diagram · 1 diagram in section
