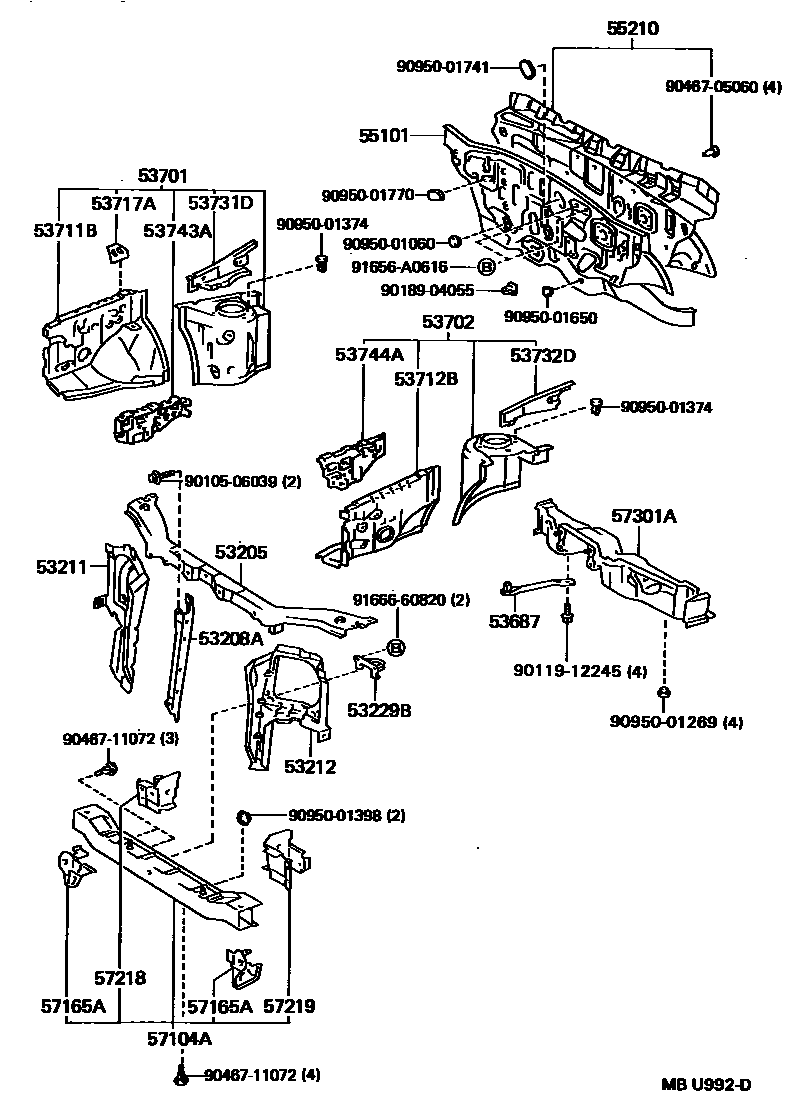

FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16090iEL42199009-199208

sub53205-16110

main53205-16110iEL42199208-199409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-16070iEL42199009-199409

53211SUPPORT, RADIATOR, RH

main53211-16090iEL42199009-199409

53212SUPPORT, RADIATOR, LH

main53212-16090iEL42199009-199409

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-16040iEL42199009-199409

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10030iEL42..DLX,LE199009-199409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16170iEL42199009-199208

sub53701-16190

main53701-16180iEL42199208-199408

sub53701-16181

main53701-16181iEL42..USA199408-199409

main53701-16190iEL42..CND199209-199408

sub53701-16191

main53701-16191iEL42..CND199408-199409

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16100iEL42199009-199208

sub53702-16130

main53702-16110iEL42199208-199408

sub53702-16111

main53702-16111iEL42..USA199408-199409

main53702-16120iEL42..CND199209-199408

sub53702-16121

main53702-16121iEL42..CND199408-199409

53711BAPRON, FRONT FENDER, FRONT RH

main53711-16130iEL42199009-199205

sub53711-16140

main53711-16140iEL42199205-199408

sub53711-16141

main53711-16141iEL42199408-199409

53712BAPRON, FRONT FENDER, FRONT LH

main53712-16060iEL42199009-199205

sub53712-16080

main53712-16070iEL42199205-199408

sub53712-16071

main53712-16071iEL42199408-199409

53717APLATE, FENDER APRON

main53717-10040iEL42199009-199409

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16030iEL42199009-199409

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16030iEL42199009-199409

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-16030iEL42199208-199409

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-16030iEL42..USA199208-199409

55101PANEL SUB-ASSY, DASH

main55101-16450iEL42..MTM199009-199409

sub55101-16451

sub82819-22220

main55101-16451iEL42..STD199208-199409

main55101-16460iEL42..3FC199009-199409

sub55101-16461

sub82819-22220

55210INSULATOR ASSY, DASH PANEL

main55210-16120iEL42199009-199409

sub55210-16121

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-16903iEL42199009-199409

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-16020iEL42199009-199409

RH

main57166-16010iEL42199009-199409

LH

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-16010iEL42199009-199404

sub57218-16030

main57218-16030iEL42199404-199409

sub57218-16031

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-16010iEL42199009-199404

sub57219-16030

main57219-16030iEL42199404-199409

sub57219-16031

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-16041iEL42..STD199404-199409

sub57301-16100

sub90105-12245

main57301-16050iEL42199009-199404

sub57301-16051

main57301-16051iEL42..STD199208-199409

sub57301-16100

sub90105-12245

9010506039

main90105-06039

9011912245

main90119-12245

9018904055

main90189-04055

9046705060

main90467-05060

9046711072

main90467-11072

9095001060

main90950-01060

9095001269

main90950-01269

9095001374

main90950-01374

9095001398

main90950-01398

9095001650

main90950-01650

9095001741

main90950-01741

9095001770

main90950-01770

91656A0616

main91656-A0616

9166660820

main91666-60820

36 parts on this diagram · 1 diagram in section
