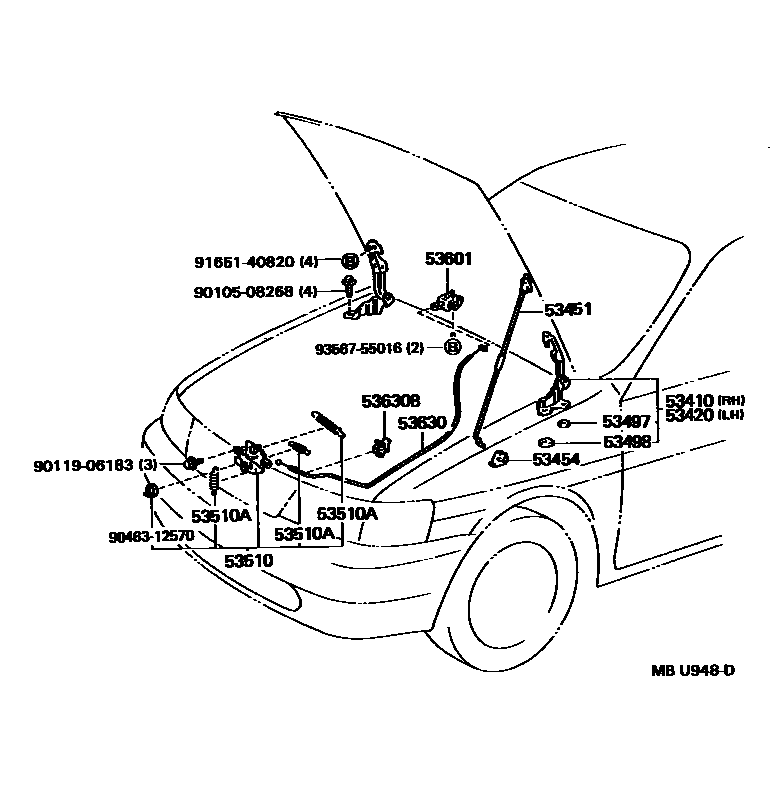

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16060iEL42199009-199107

sub53410-16061

main53410-16061iEL42199107-199409

53420HINGE ASSY, HOOD, LH

main53420-16040iEL42199009-199107

sub53420-16041

main53420-16041iEL42199107-199409

53451ROD, HOOD SUPPORT

main53440-16050iEL42199009-199106

sub53440-16051

main53440-16051iEL42199106-199409

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEL42199009-199409

53497PAD, HOOD HINGE, NO.1

main53497-16020iEL42199009-199409

OD=19,T=1.0

main53497-16030iEL42199009-199409

T=2.0

53498PAD, HOOD HINGE, NO.2

main53498-16020iEL42199009-199409

T=1.0

main53498-16030iEL42199009-199409

T=2.0

53510LOCK ASSY, HOOD

main53510-16150iEL42199009-199409

main53510-16160iEL42..USA199009-199409

PUERTORICO SPEC

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09051iEL42199009-199409

WD=0.9,CW=9.75,CW=9.75,WD=0.9

main90506-09055iEL42199009-199409

WD=0.9,CW=21,CW=21,WD=0.9

main90506-18067iEL42199009-199409

WD=1.8,CW=13,CW=13,WD=1.8

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-01iEL42199009-199208

BLACK,TRIM2#

sub53601-16020

sub53601-24030

main53601-16020-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub53601-16020

sub53601-24030

main53601-16020-22iEL42199208-199409

BLACK,TRIM2#

sub53601-16020

sub53601-24030

main53601-16020-W4iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub53601-16020

sub53601-24030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16220iEL42199009-199409

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iEL42199009-199409

9010508268

main90105-08268

9011906183

main90119-06183

9046312570

main90463-12570

9165140820

main91651-40820

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
