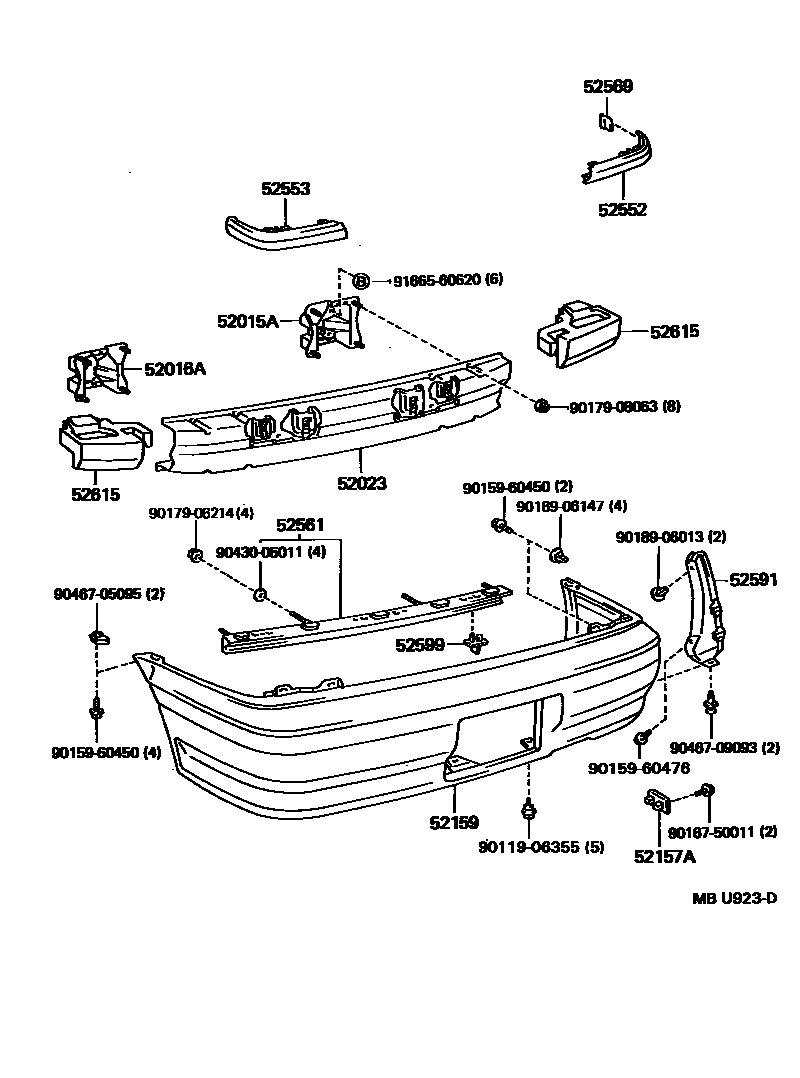

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-16170iEL42¥3,530199009-199409

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-16150iEL42¥3,530199009-199409

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-16090iEL42¥30,900199009-199409

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-16110iEL42¥650199009-199409

52159COVER, REAR BUMPER

main52159-16370iEL42¥27,800199009-199409

sub52159-16916¥27,800

main52159-16901iEL42..4DS..DLX..CND¥28,200199208-199409

CHILE SPEC & FOR GRAY PAINTED BUMPER

sub52159-16917¥28,000

52552FILLER, REAR BUMPER, RH

main52552-16020iEL42¥2,120199009-199409

52553FILLER, REAR BUMPER, LH

main52553-16020iEL42¥2,120199009-199409

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-16050iEL42¥3,170199009-199409

52569PAD, REAR BUMPER FILLER

main52569-16010iEL42¥350199009-199409

52591SEAL, REAR BUMPER SIDE, RH

main52591-16070iEL42¥1,400199009-199409

52599STOPPER, REAR BUMPER, UPPER

main52599-16010iEL42¥260199009-199409

52615ABSORBER, REAR BUMPER ENERGY

main52615-16070iEL42¥3,170199009-199409

RH

main52616-16010iEL42¥1,390199009-199409

LH

9011906355

main90119-06355¥160

9015960450

main90159-60450¥120

9015960476

main90159-60476¥100

9016750011

main90167-50011¥130

9017906214

main90179-06214¥100

9017908063

main90179-08063¥160

9018906013

main90189-06013¥70

9018906147

main90189-06147¥80

9043005011

main90430-05011¥130

9046705095

main90467-05095¥190

9046709093

main90467-09093¥190

9166560620

main91665-60620¥130

24 parts on this diagram · 1 diagram in section
