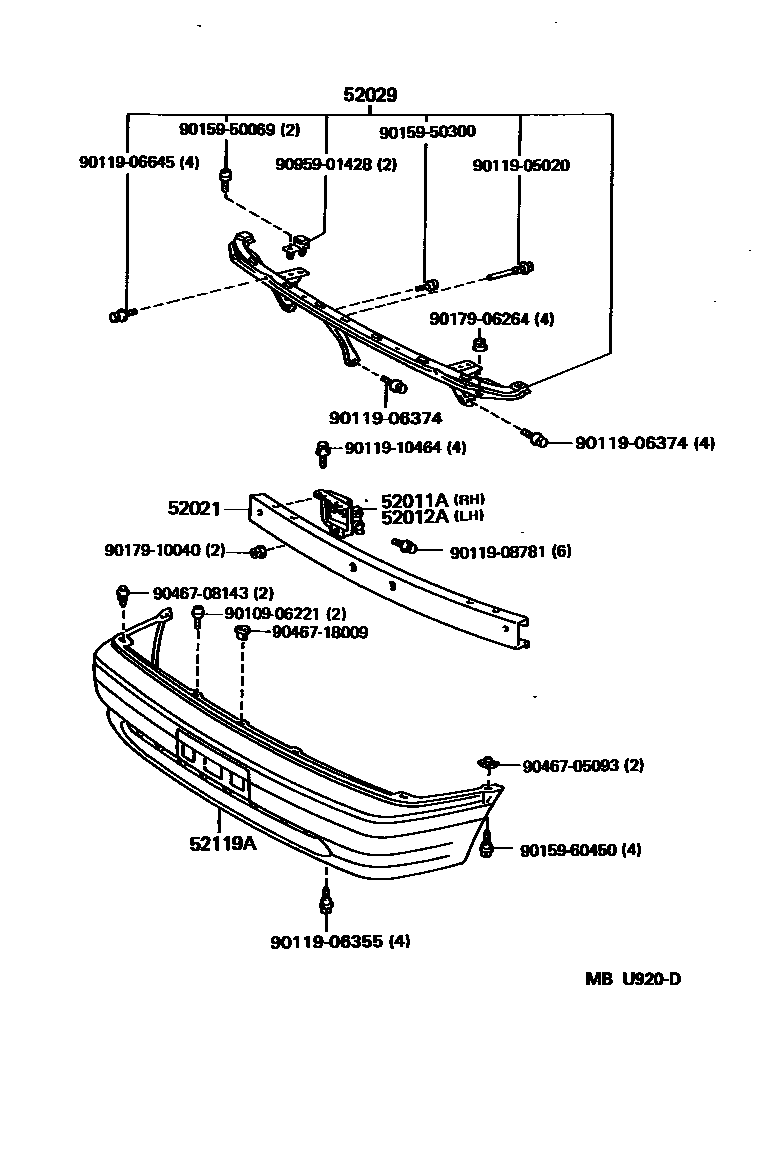

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-16130iEL42199009-199208

main52011-16150iEL42199208-199404

sub52011-16151

sub52131-16071

main52011-16151iEL42199404-199409

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-16120iEL42199009-199208

main52012-16140iEL42199208-199404

sub52012-16141

sub52131-16071

main52012-16141iEL42199404-199409

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-16080iEL42199009-199208

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16020iEL42199009-199409

52119ACOVER, FRONT BUMPER

main52119-16310iEL42199009-199409

sub52119-16916

main52119-16906iEL42..4DS..DLX..CND199208-199409

CHILE SPEC & FOR GRAY PAINTED BUMPER

sub52119-16920

main52119-16906iEL42..4DS..DLX..CND199208-199409

CHILE SPEC & FOR COLOURED BUMPER

sub52119-16920

9010906221

main90109-06221

9011905020

main90119-05020

9011906355

main90119-06355

9011906374

main90119-06374

9011906645

main90119-06645

9011908781

main90119-08781

9011910464

main90119-10464

9015950069

main90159-50069

9015950300

main90159-50300

9015960450

main90159-60450

9017906264

main90179-06264

9017910040

main90179-10040

9046705093

main90467-05093

9046708143

main90467-08143

9046718009

main90467-18009

9095901428

main90959-01428

21 parts on this diagram · 2 diagrams in section
