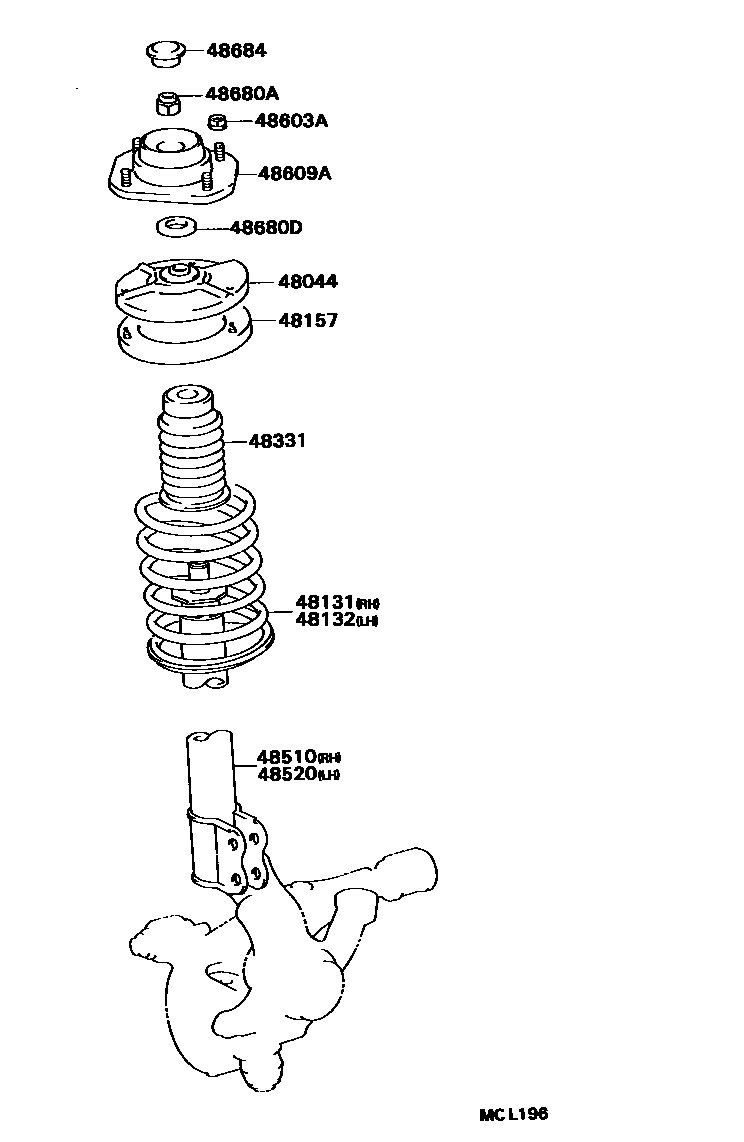

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
W(AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
W(AIR CONDITIONER)
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
12 parts on this diagram · 1 diagram in section
