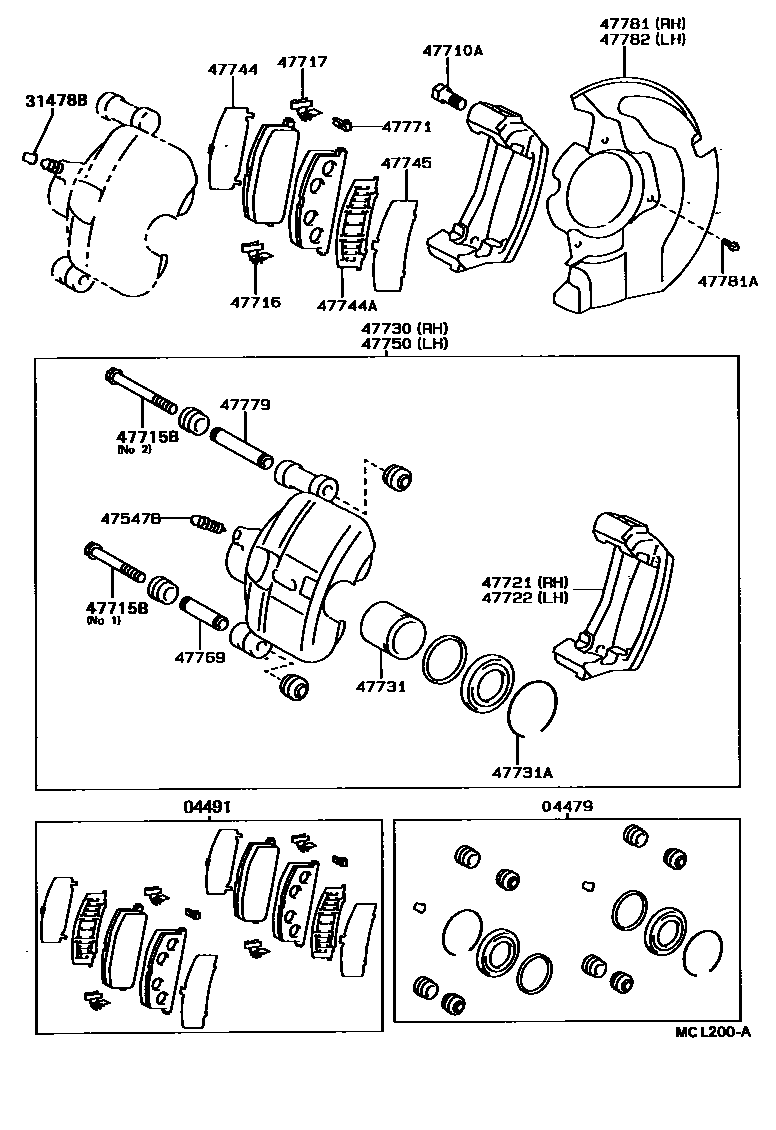

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
W(*66)
04491PAD KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX25.8-19.5
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
W(*66),NO.1
W(*66),NO.2
NO.1
NO. 1
NO. 2
NO.2
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
W(*66)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
W(*66)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
W(*66)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
W(*66)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
W(*66)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
W(*66)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
W(*66)
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
W(*66)
47771PLATE, PAD WEAR INDICATOR, NO.1
W(*66)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
W(*66)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
23 parts on this diagram · 2 diagrams in section
