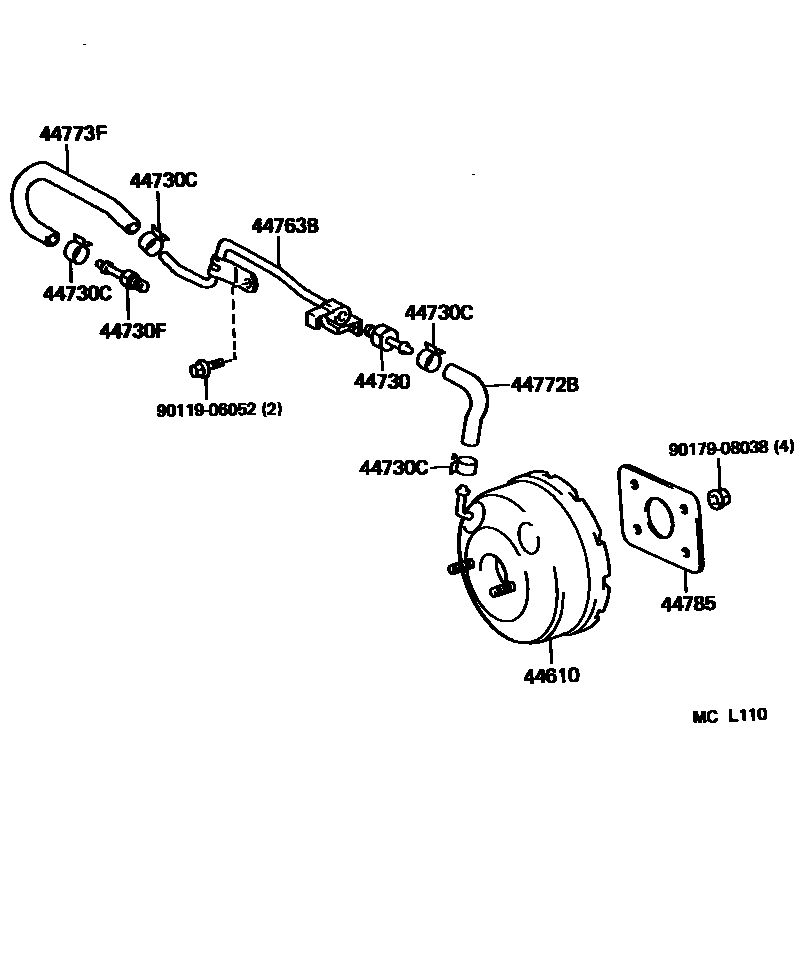

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-16300iEL42..STD199009-199012

main44610-16310iEL42..DLX,LE199009-199208

main44610-16350iEL42199208-199409

W(*66)

main44610-16530iEL42199208-199409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iEL42199009-199409

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iEL42199009-199409

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90407-51002iEL42199009-199409

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-16030iEL42199009-199409

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16110iEL42199009-199409

44773FHOSE, UNION TO CHECK VALVE

main44773-16120iEL42199009-199409

44785GASKET, BRAKE BOOSTER

main44785-10020iEL42199009-199409

9011906052

main90119-06052

9017908038

main90179-08038

10 parts on this diagram · 1 diagram in section
