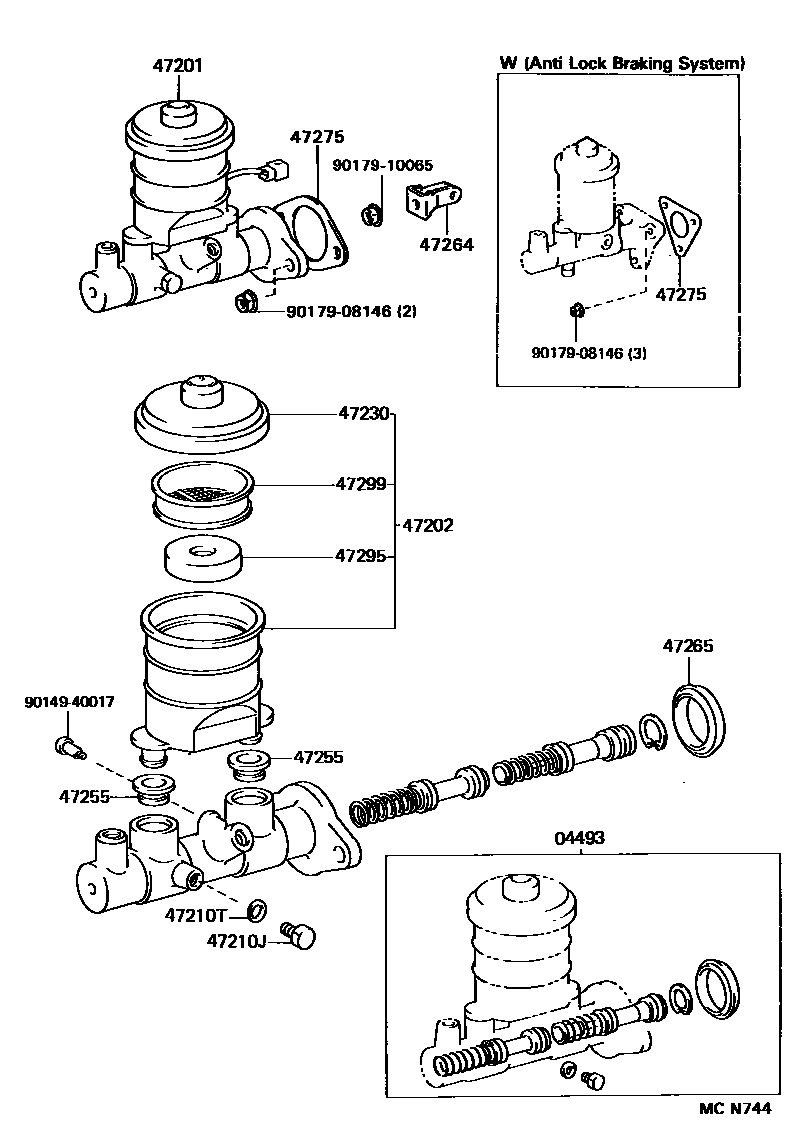

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-10130iEL42199208-199409

W(*66)

main04493-16070iEL42199009-199409

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16170iEL42..STD199009-199012

main47201-16200iEL42..DLX,LE199009-199409

main47201-16220iEL42199208-199409

W(*66)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-10010iEL42199208-199409

W(*66)

main47220-16040iEL42199009-199409

sub47220-16060

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL42199009-199409

main90430-06104iEL42199208-199409

W(*66)

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL42199208-199409

W(*66)

main90109-06123iEL42199009-199409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL42199009-199409

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL42199208-199409

W(*66)

main47255-20010iEL42199009-199409

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iEL42199009-199409

47265BOOT, MASTER CYLINDER

main47265-20050iEL42199208-199407

W(*66)

main47265-20080iEL42199009-199409

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEL42199212-199409

main47275-14010iEL42199009-199212

sub47275-26010

main47275-32010iEL42199208-199409

W(*66)

47295FLOAT, SWITCH OPERATING

main47295-20040iEL42199009-199409

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL42199208-199409

W(*66)

main47299-16020iEL42199009-199409

9014940017

main90149-40017

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
