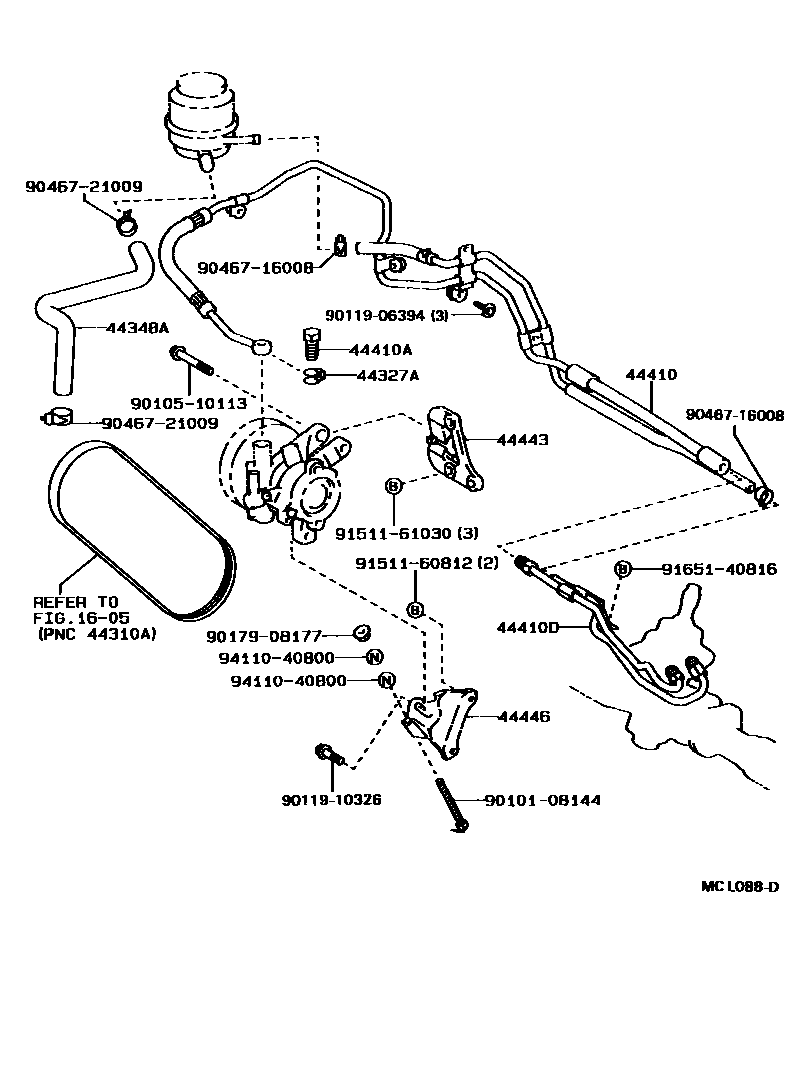

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL42¥260199009-199409

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16100iEL42¥3,210199009-199409

44410TUBE ASSY, PRESSURE FEED

main44410-16200iEL42¥30,300199009-199104

main44410-16201iEL42¥28,300199104-199208

sub44410-16202¥29,800

main44410-16202iEL42¥29,800199208-199405

sub44410-16203¥29,800

main44410-16203iEL42¥29,800199405-199409

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL42¥610199208-199212

main90401-16012iEL42¥520199212-199409

main90401-16017iEL42¥610199009-199208

sub90401-16008¥610

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-10190iEL42¥11,400199408-199409

main44410-16150iEL42¥7,800199009-199104

main44410-16240iEL42¥11,300199104-199408

sub44410-10190¥11,400

44443BRACKET, PUMP

main44443-13010iEL42¥3,730199009-199409

44446STRUT, ADJUSTING

main44446-16060iEL42¥1,360199009-199012

sub44446-16061¥1,350

main44446-16061iEL42¥1,350199012-199409

9010108144

main90101-08144¥70

9010510113

main90105-10113¥160

9011906394

main90119-06394¥160

9011910326

main90119-10326¥140

9017908177

main90179-08177¥120

9046716008

main90467-16008¥240

9046721009

main90467-21009¥370

9151160812

main91511-60812¥140

9151161030

main91511-61030¥240

9165140816

main91651-40816¥80

9411040800

main94110-40800¥120

19 parts on this diagram · 1 diagram in section
