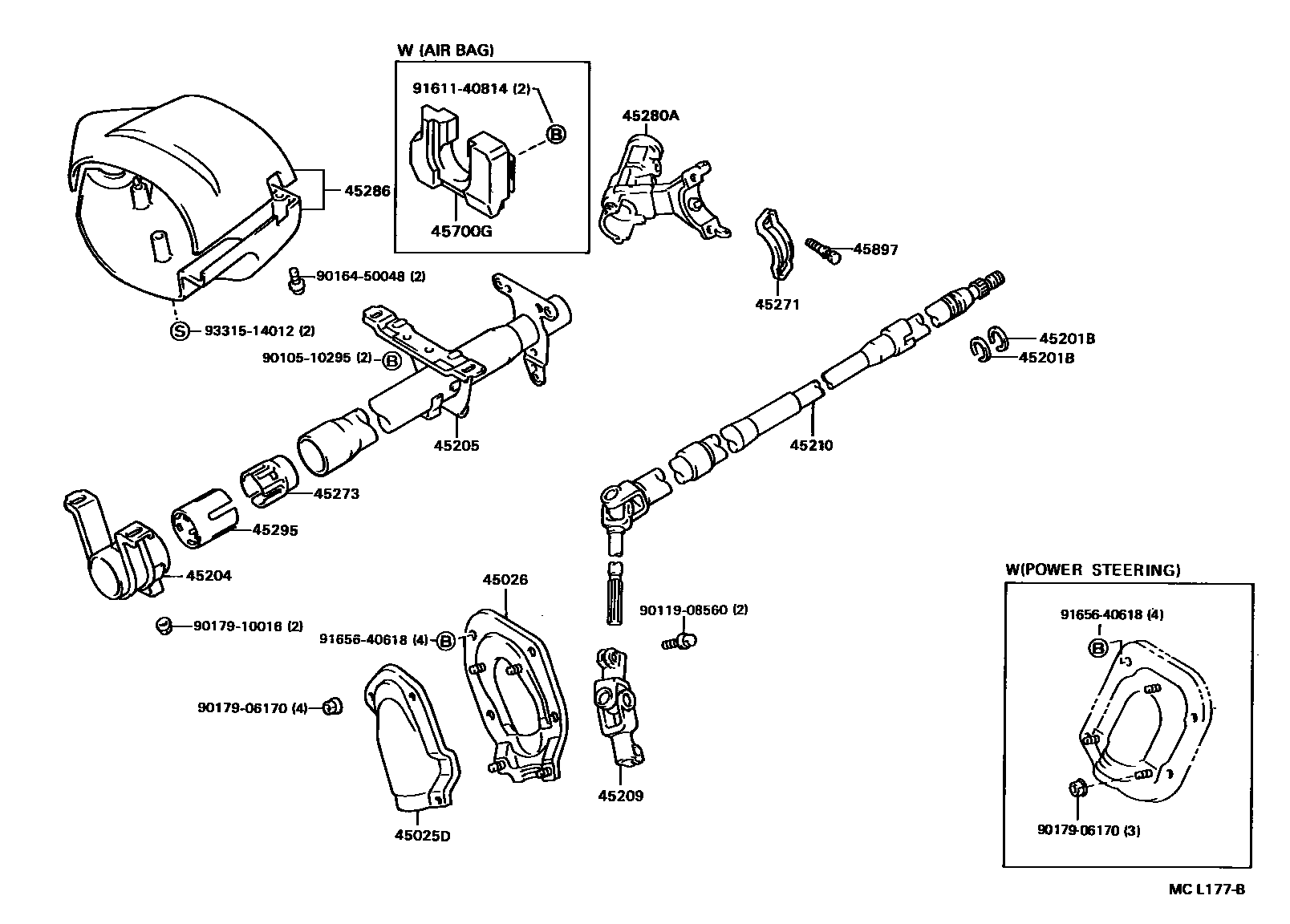

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
W(POWER STREEING)
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
W(POWER STREEING)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20,W(POWER STEERING),NO.1
T=1.20,NO.1
T=1.35-1.45
T=1.20,NO.2
45204TUBE ASSY, STEERING COLUMN, LOWER
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
W(POWER STREEING)
45210SHAFT ASSY, STEERING MAIN
W(POWER STREEING)
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
45295BUSH, STEERING COLUMN TUBE
45700GDAMPER ASSY, STEERING
9010510295
main90105-10295
9011908560
main90119-08560
9016450048
main90164-50048
9017906170
main90179-06170
9017910016
main90179-10016
9161140814
main91611-40814
9165640618
main91656-40618
9331514012
main93315-14012
22 parts on this diagram · 1 diagram in section
