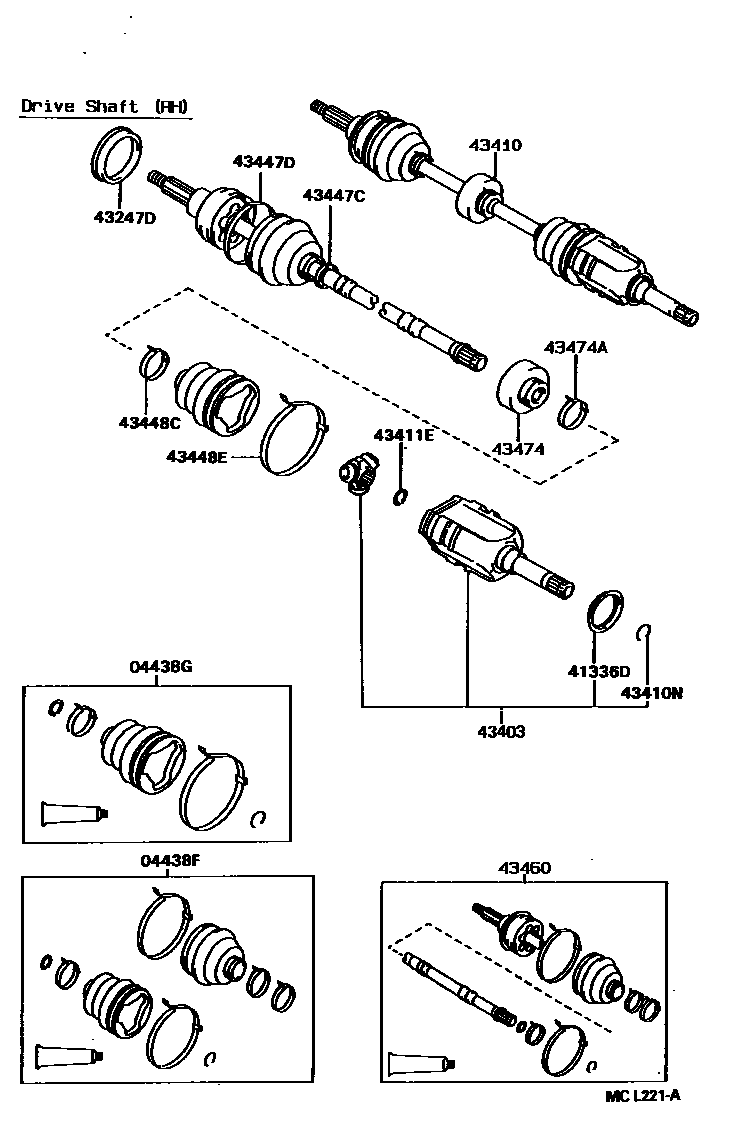

FRONT DRIVE SHAFT

0001 1 0002 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-16060iEL42¥10,800199009-199409

sub04438-16061

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-16050iEL42¥6,700199009-199409

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iEL42¥130199009-199409

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-10020iEL42¥590199009-199208

main43247-16040iEL42¥940199208-199409

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-16020iEL42¥22,600199009-199409

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16180iEL42¥80,500199009-199101

sub43410-16181¥76,300

sub43525-20030¥300

sub90179-22020¥310

main43410-16181iEL42¥76,300199101-199409

sub43410-16182¥76,300

sub90178-22001¥310

main43410-16240iEL42¥79,700199208-199409

W(*66)

sub43410-16241¥79,700

sub90178-22001¥310

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iEL42¥100199009-199409

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20049iEL42¥180199009-199409

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01694iEL42¥270199009-199409

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01693iEL42¥270199009-199409

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01694iEL42¥270199009-199409

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01695iEL42¥270199009-199409

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19575iEL42¥49,600199009-199101

sub43460-19576¥49,100

sub43525-20030¥300

sub90179-22020¥310

main43460-19576iEL42¥49,100199101-199409

sub43460-19577¥49,100

sub90178-22001¥310

main43460-19735iEL42¥47,000199208-199409

W(*66)

sub43460-19736¥47,000

sub90178-22001¥310

43474DAMPER, DRIVE SHAFT

main43474-16020iEL42¥4,100199009-199409

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01706iEL42¥270199009-199409

15 parts on this diagram · 2 diagrams in section
