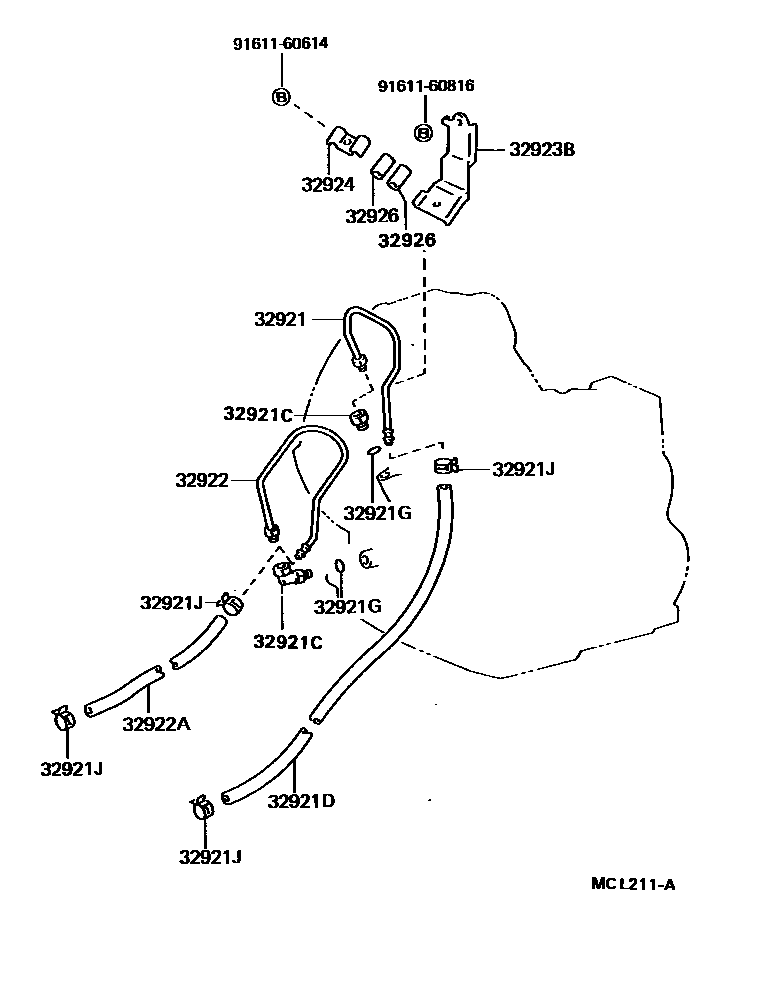

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-10070iEL42..3FC199009-199409

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEL42..3FC199009-199409

INLET

main90407-14003iEL42..3FC199009-199409

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15045iEL42..3FC199009-199212

main90445-15045iEL42..3FC199212-199409

L=200

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEL42..3FC199009-199409

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iEL42..3FC199009-199409

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10070iEL42..3FC199009-199409

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15046iEL42..3FC199009-199409

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16060iEL42..3FC199009-199409

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iEL42..3FC199009-199409

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEL42..3FC199009-199409

L=30,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
