CLUTCH HOUSING & TRANSMISSION CASE (MTM)

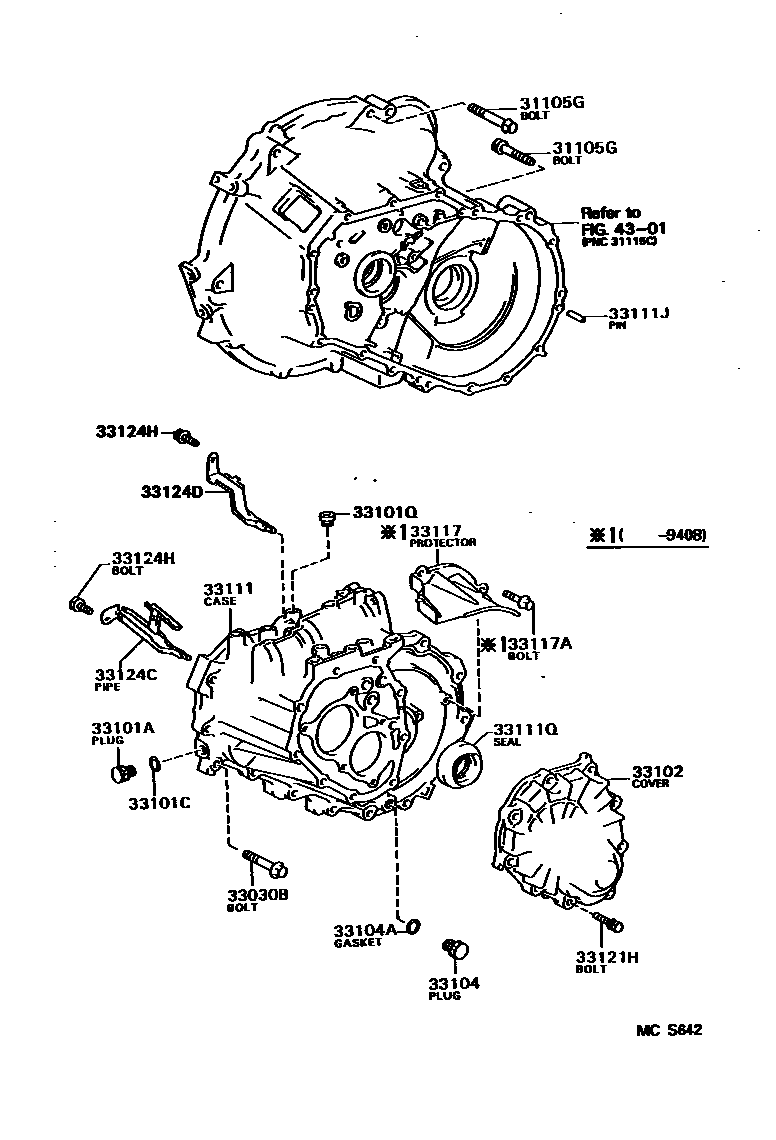

Parts diagram

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097i199009-199409

*10-1.25PX60-22

main91611-61025i199009-199408

*10-1.25PX25-25

main91612-41025i199408-199409

*10-1.25PX25-25

main91619-61260i199009-199409

*12-1.25PX60-30

main91621-60614i199009-199409

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086i199009-199409

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i199009-199409

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199009-199409

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008i199009-199409

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10010i199009-199105

main33102-10011i199105-199208

main33102-10012i199208-199405

main33102-10013i199405-199409

main33102-10020i199009-199105

main33102-10021i199105-199208

main33102-10022i199208-199407

main33102-10023i199407-199409

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199009-199409

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199009-199409

33111CASE, MANUAL TRANSMISSION

main33111-10071i199009-199405

main33111-16050i199405-199409

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i199009-199409

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008i199009-199108

main90311-34017i199108-199409

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010i199009-199408

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040i199009-199408

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08494i199009-199409

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010i199009-199409

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020i199009-199405

main33124-10021i199405-199409

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820i199009-199409

4301

18 parts on this diagram · 2 diagrams in section
