TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

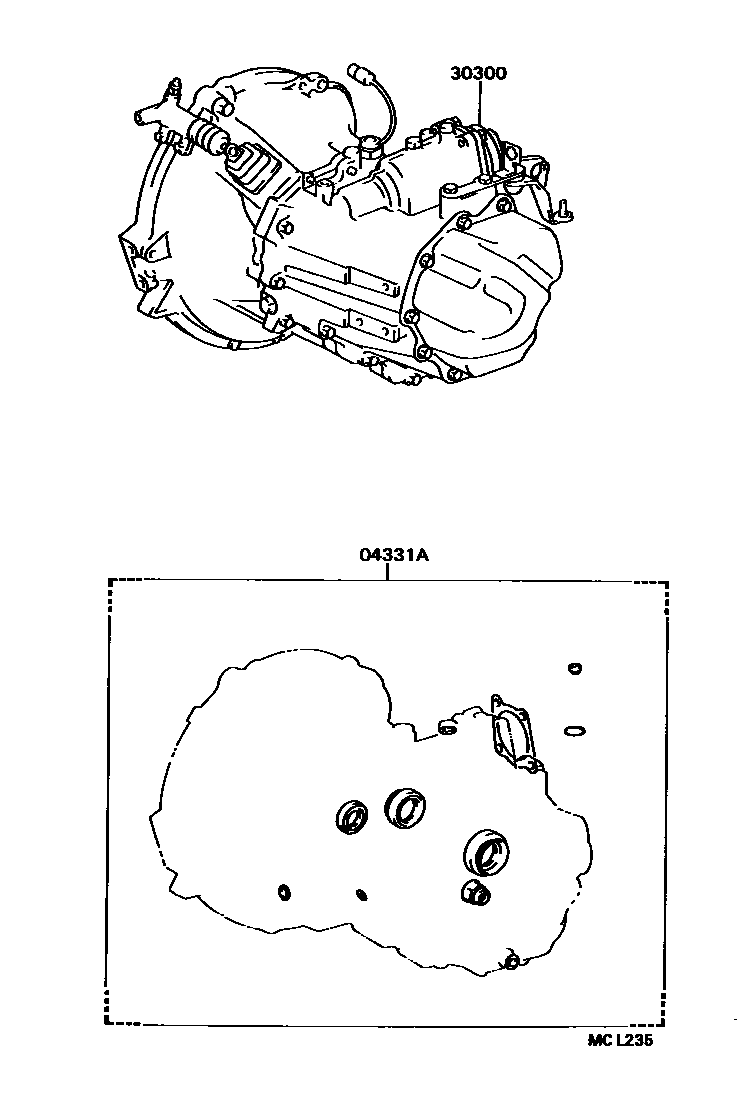

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i199009-199409
30300TRANSAXLE ASSY, MANUAL
main30300-16490i199009-199405
sub30300-16491
main30300-16491i199405-199409
sub30300-16492
main30300-16500i199009-199405
sub30300-16501
main30300-16501i199405-199409
sub30300-16502

2 parts on this diagram · 1 diagram in section
