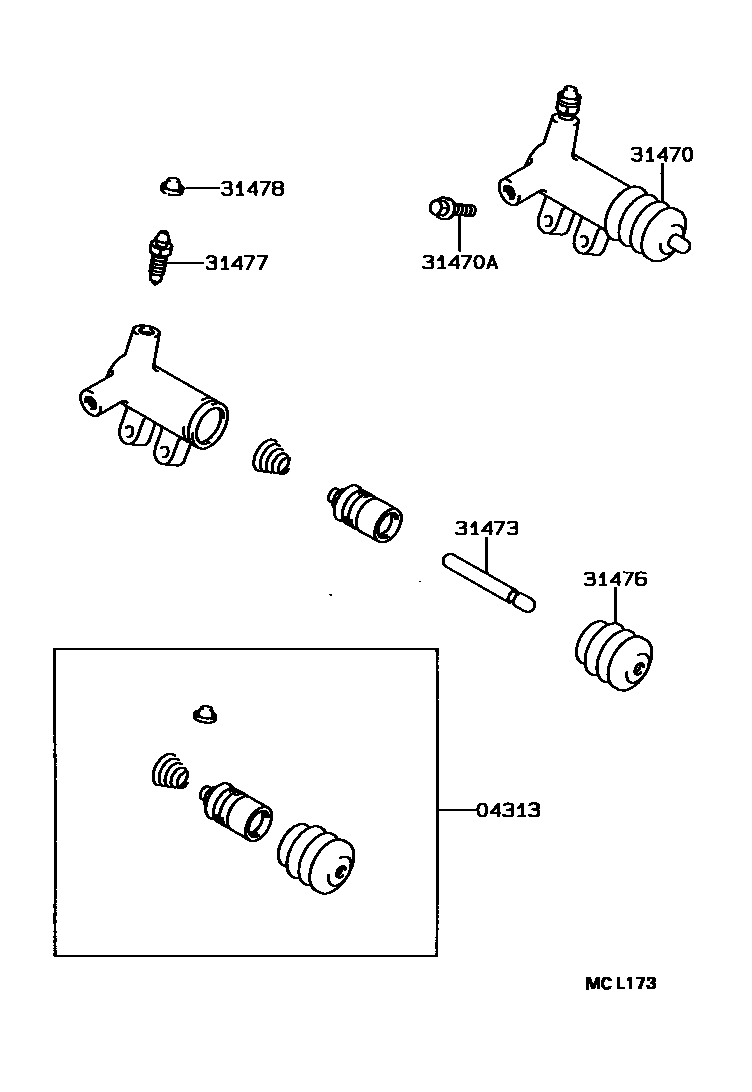

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iEL42..MTM199009-199401

main04313-17010iEL42..MTM199401-199409

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10012iEL42..MTM199009-199409

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iEL42..MTM199009-199409

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iEL42..MTM199401-199409

main31473-32010iEL42..MTM199009-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iEL42..MTM199009-199409

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iEL42..MTM199009-199409

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iEL42..MTM199009-199409

7 parts on this diagram · 1 diagram in section
