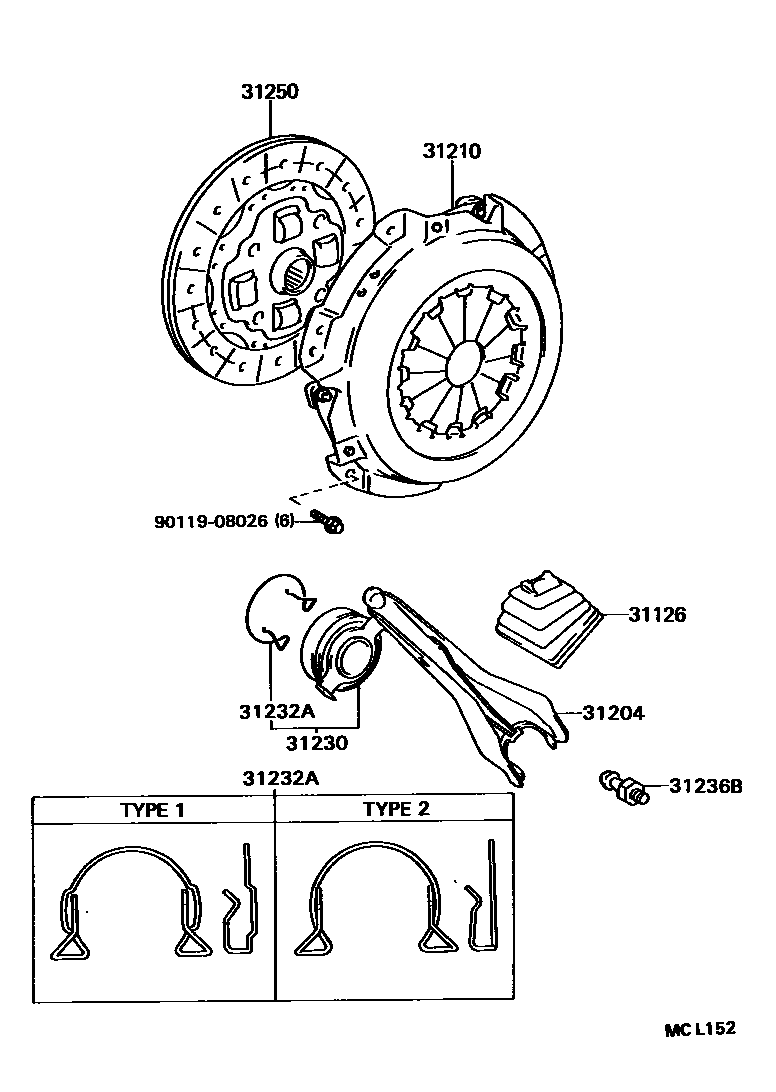

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEL42..MTM199009-199409

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL42..MTM199009-199409

31210COVER ASSY, CLUTCH

main31210-12210iEL42..STD199104-199409

sub31210-12280

main31210-16071iEL42..5F199009-199409

sub31210-16130

main31210-16102iEL42..STD199009-199104

sub31210-12210

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL42..MTM199009-199409

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEL42..MTM199009-199409

TYPE 2

main31232-16031iEL42..MTM199009-199409

TYPE 1

31236BSUPPORT, RELEASE FORK

main31236-12011iEL42..MTM199009-199409

31250DISC ASSY, CLUTCH

main31250-12171iEL42..5F199009-199104

sub31250-12172

main31250-12172iEL42..5F199104-199106

sub31250-12173

main31250-12173iEL42..5F199106-199409

sub31250-12174

main31250-12201iEL42..STD199009-199104

sub31250-12290

main31250-12290iEL42..STD199104-199409

sub31250-12400

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
