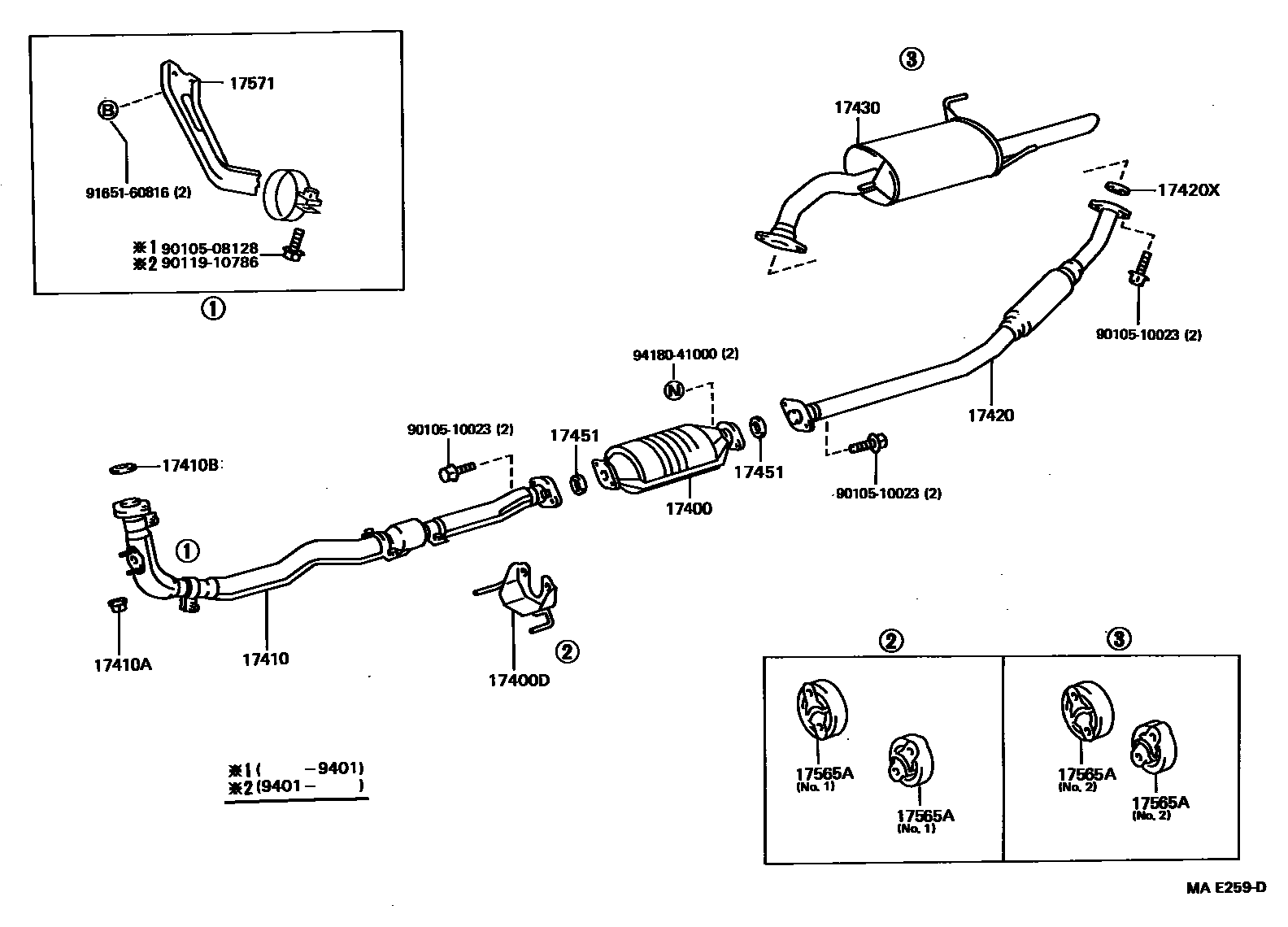

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17400DBRACKET, CATALYTIC CONVERTER SUPPORT
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
9010508128
main90105-08128
9010510023
main90105-10023
9011910786
main90119-10786
9165160816
main91651-60816
9418041000
main94180-41000
16 parts on this diagram · 1 diagram in section
