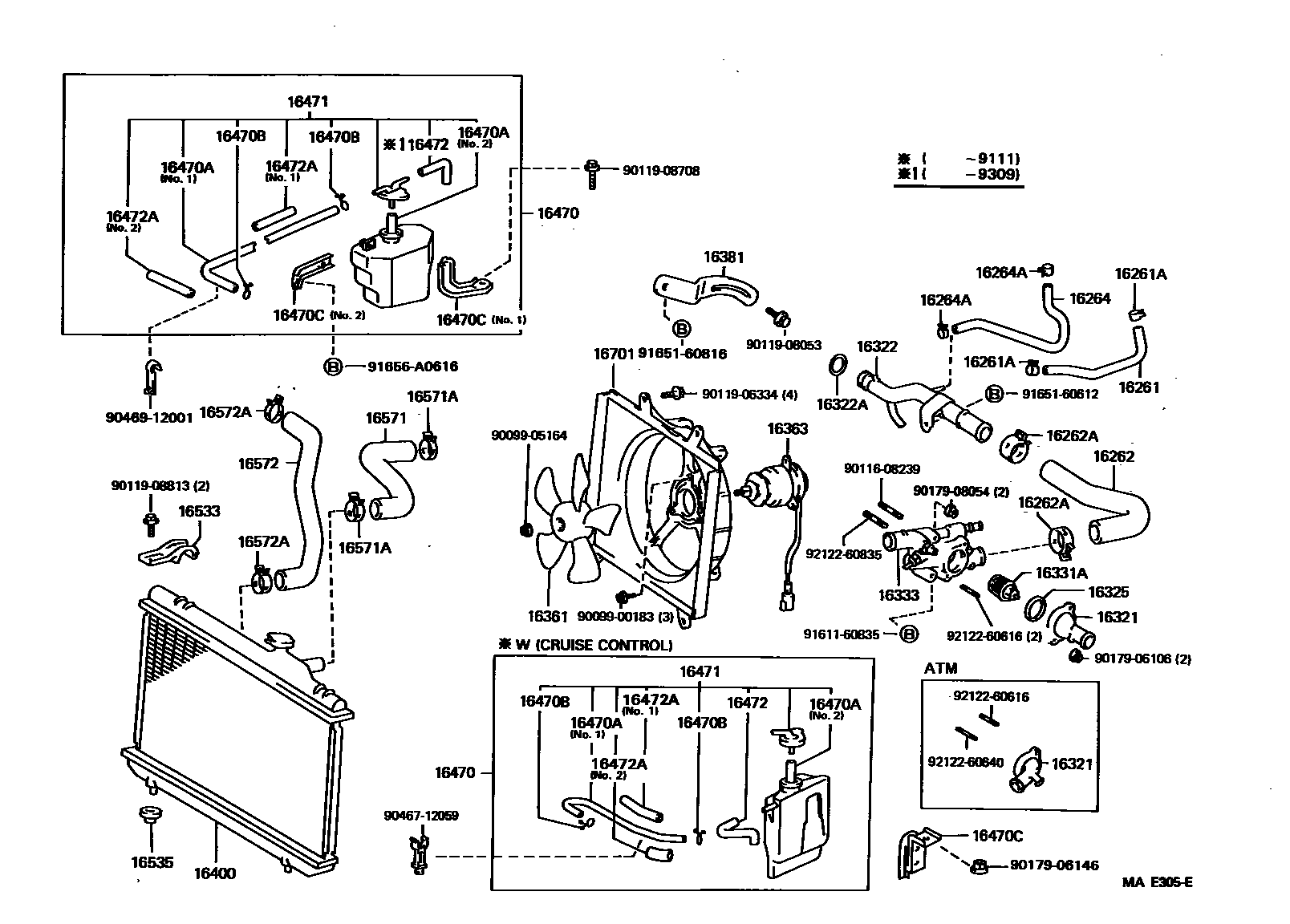

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16264HOSE, WATER BY-PASS, NO.2
*H,L=200
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16321INLET, WATER
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 82-95
16333HOUSING, WATER OUTLET
16361FAN
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
CHILE SPEC
COLD AREA SPEC
16400RADIATOR ASSY
PUERTORICO SPEC
16470TANK ASSY, RADIATOR RESERVE
W(CRUISE CONTROL)
W(ABS)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
W(CRUISE CONTROL),NO.1
W(*66),NO.1
L=1000,NO.1
L=600,W(*66),NO.2
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
NO.1
NO.2
W(CRUISE CONTROL)
W(*66)
16471CAP SUB-ASSY, RESERVE TANK
W(ABS)
W(CRUISE CONTROL)
16472HOSE, BREATHER
W(CRUISE CONTROL)
W(ABS)
16472APROTECTOR, HOSE
NO.1
W(CRUISE CONTROL)
W(CRUISE CONTROL),NO.1
W(ABS),NO.1
W(ABS),NO.2
W(CRUISE CONTROL),NO.2
16533SUPPORT, RADIATOR, UPPER
PUERTORICO SPEC
16535SUPPORT, RADIATOR, LOWER
PUERTORICO SPEC
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
9011608239
9011906334
9011908053
9011908708
9011908813
9017906106
9017906146
9017908054
9046712059
9046912001
9161160835
9165160612
9165160816
91656A0616
9212260616
9212260640
9212260835
49 parts on this diagram · 2 diagrams in section
