VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-10020i3EE..EL42199009-199409

sub12204-10030

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18006i3EE..EL42199009-199409

12261HOSE, VENTILATION

main12261-11150i3EE..EL42199009-199409

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14003i3EE..EL42199009-199409

12262HOSE, VENTILATION, NO.2

main12262-11090i3EE..EL42199009-199409

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13036i3EE..EL42199009-199105

sub90467-13001

main90467-14043i3EE..EL42199105-199409

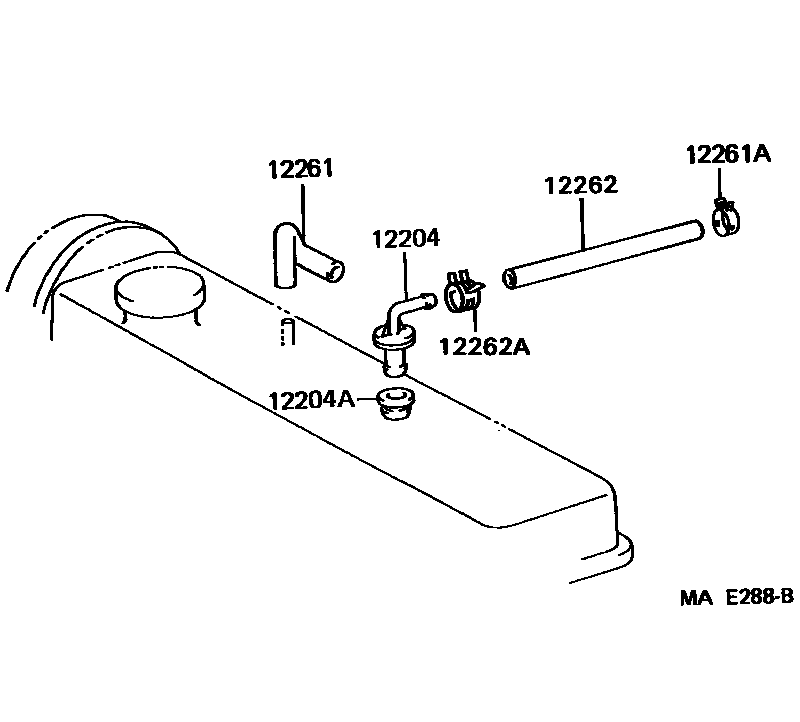

6 parts on this diagram · 1 diagram in section
