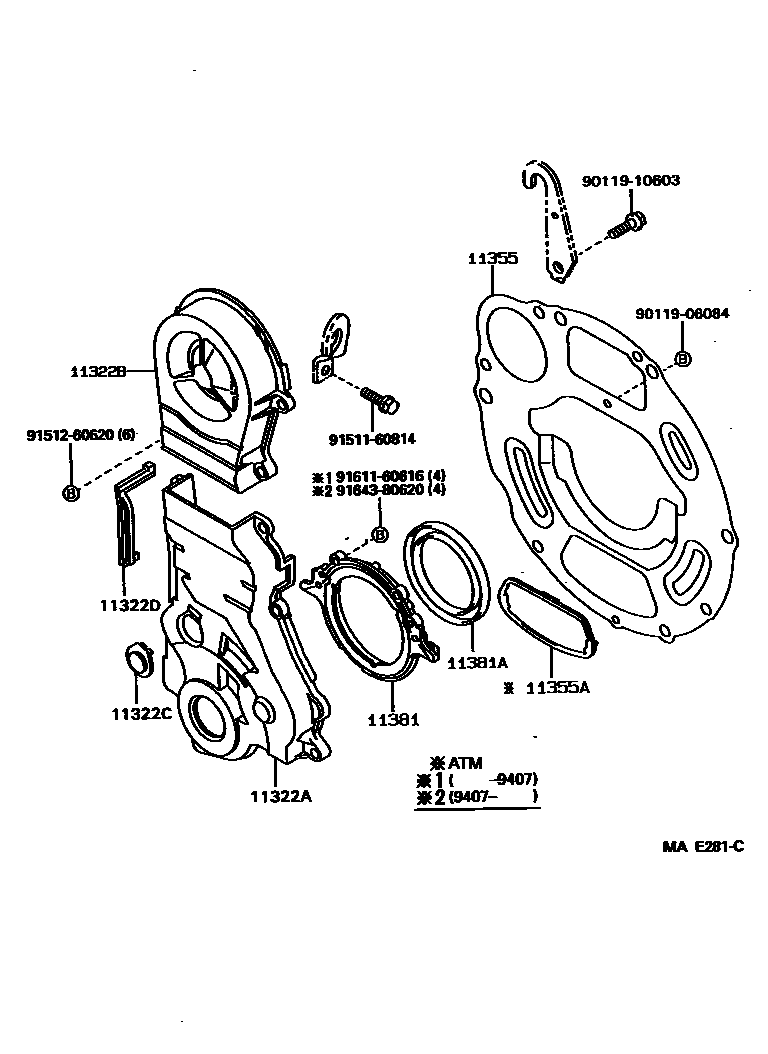

TIMING GEAR COVER & REAR END PLATE

11322ACOVER, TIMING BELT, NO.1

main11302-11090i3EE..EL42199009-199409

11322BCOVER, TIMING BELT, NO.2

main11303-11010i3EE..EL42199009-199409

11322CCOVER, TIMING BELT, NO.3

main11323-10011i3EE..EL42199009-199409

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11060i3EE..EL42199009-199309

sub11328-11061

main11328-11061i3EE..EL42199309-199409

11355PLATE, REAR END

main11355-10011i3EE..EL42..MTM199009-199409

sub11355-10012

main11355-11011i3EE..EL42..3FC199009-199409

sub11355-11012

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i3EE..EL42..3FC199009-199409

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i3EE..EL42199009-199407

main11381-10021i3EE..EL42199407-199409

11381ASEAL, ENGINE REAR OIL

main90311-80007i3EE..EL42199009-199108

NOK

sub90311-80012

main90311-80012i3EE..EL42199108-199208

NOK

main90311-80012i3EE..EL42199208-199409

9011906084

main90119-06084

9011910603

main90119-10603

9151160814

main91511-60814

9151260620

main91512-60620

9161160616

main91611-60616

9164380620

main91643-80620

14 parts on this diagram · 1 diagram in section
