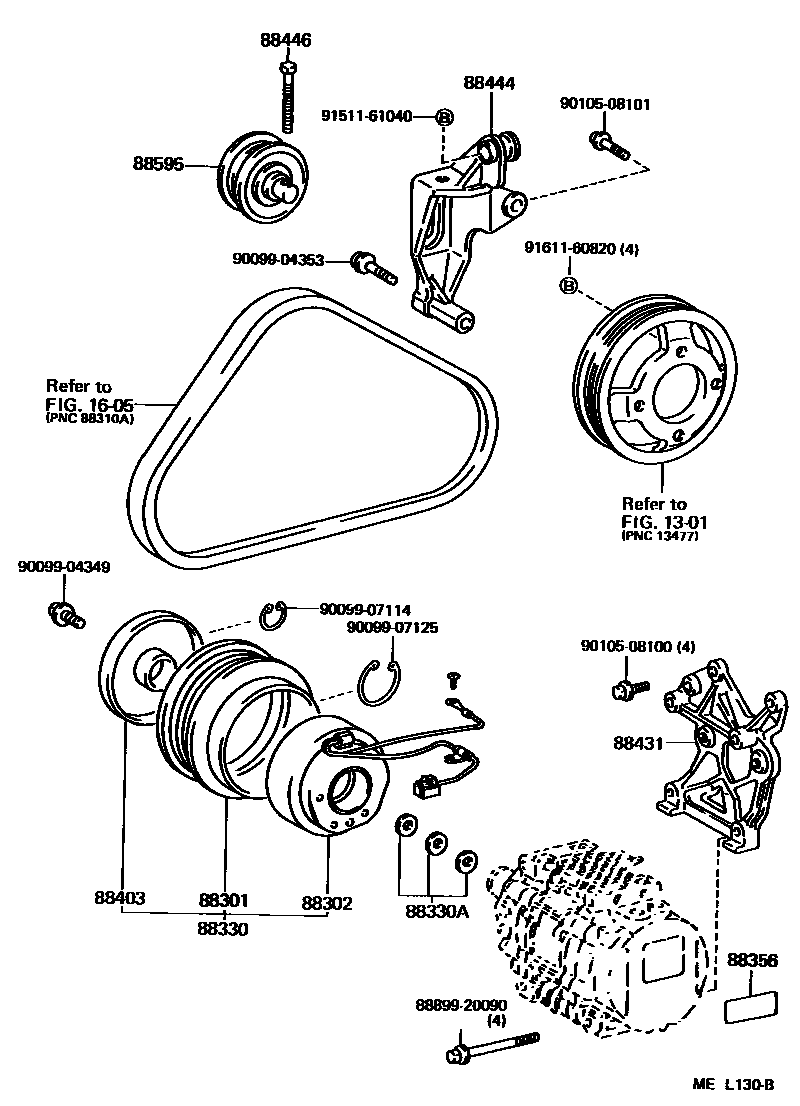

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1301

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16050iEL31..TER198808-199009

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16021iEL31..TER198808-199009

sub88411-60030

88330CLUTCH ASSY, MAGNET

main88410-10210iEL31..TER198901-199009

sub88410-1A080

main88410-16050iEL31..TER198808-198901

sub88410-1A080

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEL31..TER198808-199009

88356LABEL, COMPRESSOR CAUTION

main88356-12010iEL31..TER198808-199009

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iEL31..TER198808-199009

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16040iEL31..TER198808-199009

88444BRACKET, IDLE PULLEY

main88444-16030iEL31..TER198808-199009

88446BOLT, IDLE PULLEY

main88446-12030iEL31..CND198808-199009

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170iEL31..TER198808-199009

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904353

main90099-04353

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

9161160820

main91611-60820

21 parts on this diagram · 2 diagrams in section
