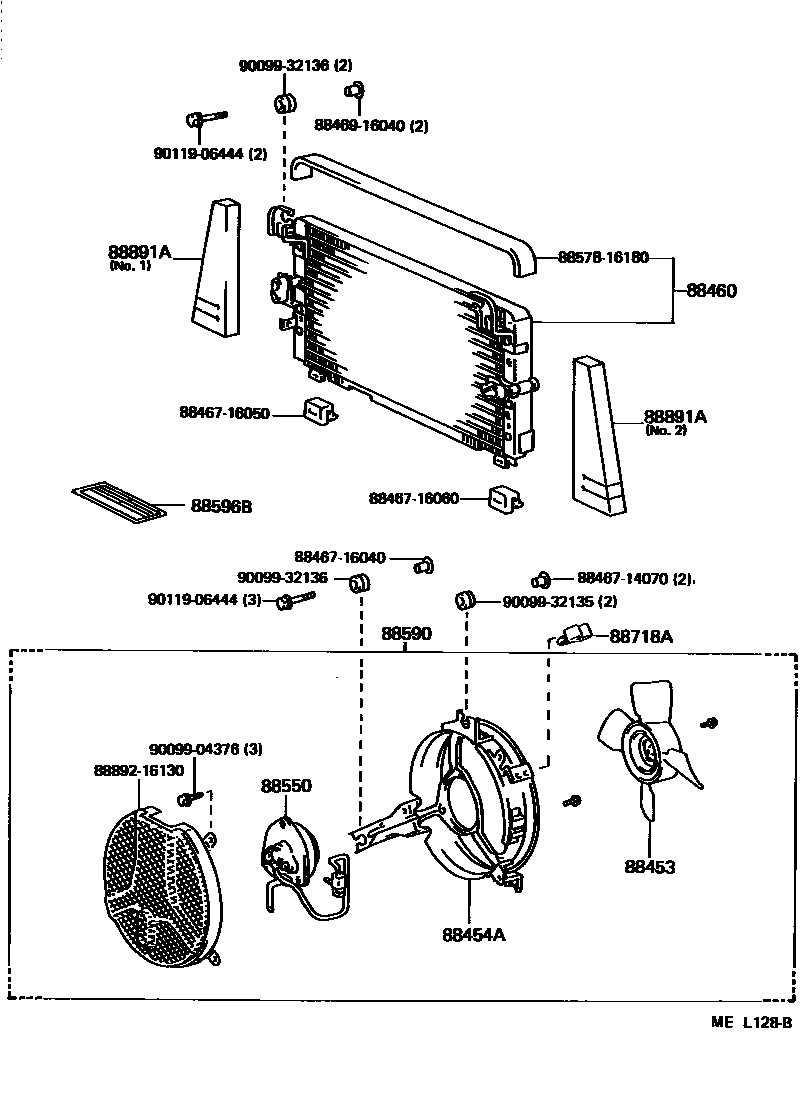

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88453FAN, COOLING (FOR CONDENSER)

main88453-12050iEL31..CND198808-199009

88454ASHROUD, FAN

main88454-16090iEL31..CND198808-199009

88460CONDENSER ASSY, COOLER

main88460-16200iEL31..CND198808-199009

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12120iEL31..CND198808-199009

88590BLOWER ASSY, W/SHROUD

main88590-16020iEL31..CND198808-199009

88596BPLATE, CAUTION, NO.1

main88596-24010iEL31..TER..USA198808-199009

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-16360iEL31..(DX,STD)..USA..CBR198808-199009

88891APACKING A (FOR COOLER)

main88578-16130iEL31..TER..USA198808-199009

NO.1

main88578-16170iEL31..TER..USA198808-199009

NO.2

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846716040CUSHION, COOLER CONDENSER, NO.1

main88467-16040

8846716050CUSHION, COOLER CONDENSER, NO.1

main88467-16050

8846716060CUSHION, COOLER CONDENSER, NO.1

main88467-16060

8846916040SWITCH, PRESSURE CONTROL

main88469-16040

8857816180PAKING, COOLER AIR DUCT

main88578-16180

8889216130BRACKET, COOLER EVAPORATOR MOUNTING

main88892-16130

9009904376

main90099-04376

9009932135

main90099-32135

9009932136

main90099-32136

9011906444

main90119-06444

19 parts on this diagram · 5 diagrams in section
