CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-16010iEL31..DX198808-198905

sub83731-16011

main83731-16020iEL31..DX198905-199009

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-16020iEL31..DX198808-198908

main84630-16021iEL31..(2DS,5DS)..CND198908-199009

88200BHOSE, CRUISE CONTROL VACUUM

main90447-04098iEL31..DX198808-199009

NO.2

main90999-92002iEL31..DX198808-199009

L=130,NO.1

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-16021iEL31..DX..CND198808-199009

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-16010iEL31..DX198808-199009

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iEL31..5F..DX198808-199009

88240COMPUTER ASSY, CRUISE CONTROL

main88240-16020iEL31..DX198808-199009

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-16010iEL31..DX198808-199009

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-16020iEL31..DX198808-199009

9011906198

main90119-06198

9011906339

main90119-06339

9020505002

main90205-05002

9046400393

main90464-00393

9046712026

main90467-12026

9165140612

main91651-40612

9165640616

main91656-40616

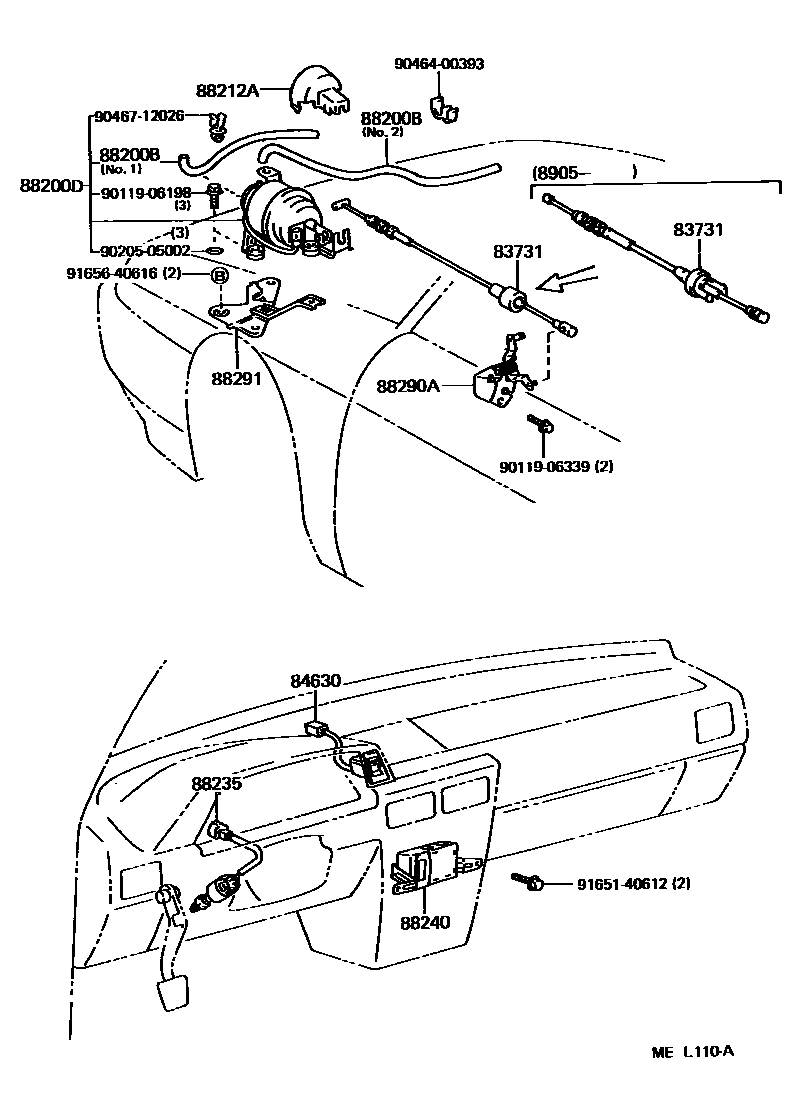

16 parts on this diagram · 1 diagram in section
