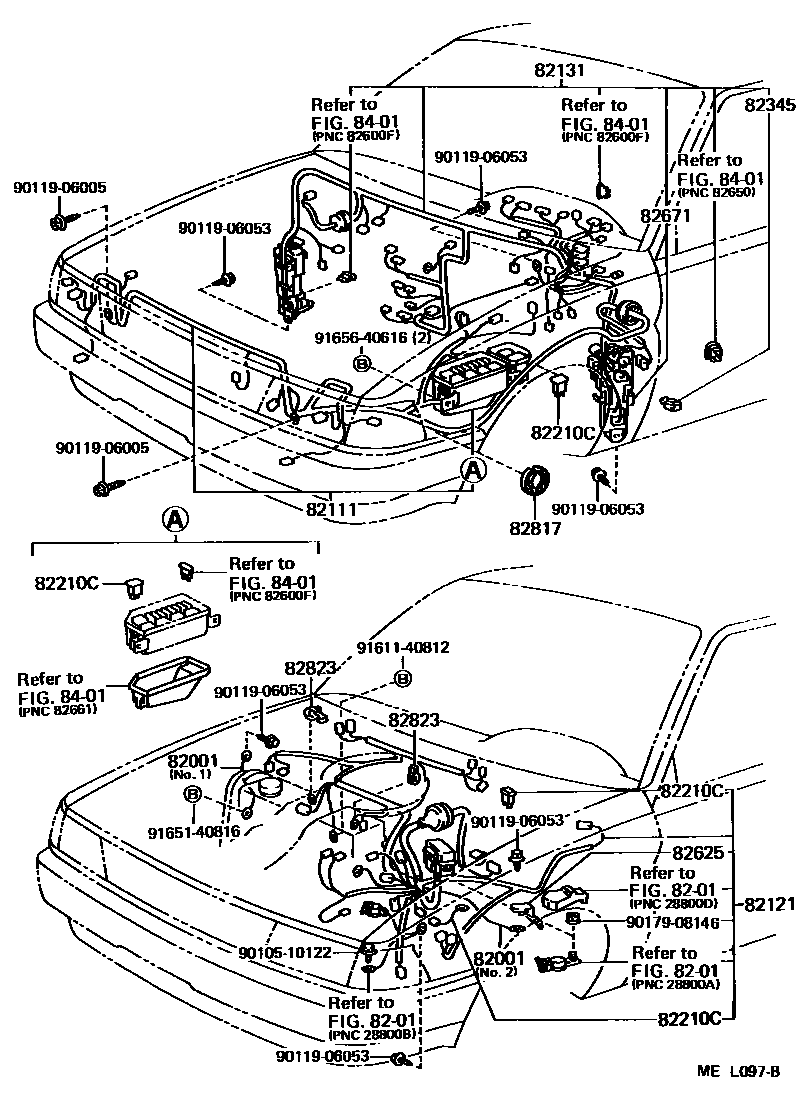

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07242iEL31¥740198808-199009

NO.2

main90980-07282iEL31¥530198808-199009

NO.1

8201

82111WIRE, ENGINE ROOM MAIN

main82111-16632iEL31..EZ¥45,900198808-198908

main82111-16633iEL31..EZ¥46,000198908-199009

main82111-16701iEL31..DX,STD¥45,900198808-198908

main82111-16702iEL31..(DX,STD)..USA..CBR¥46,000198908-199009

main82111-16711iEL31..TER..BASE¥45,900198808-198908

main82111-16712iEL31..TER..BASE..USA¥46,000198908-199009

main82111-16721iEL31..(3DS,5DS)..(DX,STD)¥45,900198808-198908

W(RR WIPER)

main82111-16722iEL31..3DS..STD..USA..CBR¥46,000198908-199009

W(RR WIPER)

main82111-16731iEL31..(3DS,5DS)..DX¥45,900198808-198908

W(*CRC)

main82111-16741iEL31..2DS..USA¥45,900198808-198908

W(ANTI-THEFT DEVICE)

main82111-16742iEL31..DX..USA..CBR;EL31..3DS..STD..USA..CBR¥46,000198908-199009

W(ANTI-THEFT DEVICE)

main82111-16751iEL31..TER..BASE..USA¥45,900198808-198908

W(ANTI-THEFT DEVICE)

main82111-16752iEL31..TER..BASE..USA¥46,000198908-199009

W(ANTI-THEFT DEVICE)

main82111-16781iEL31..EFI¥46,000198908-199009

main82111-16791iEL31..3DS..EFI¥59,300198908-199009

W(RR WIPER)

main82111-16811iEL31..(DX,STD)..CND¥46,000198908-199009

main82111-16821iEL31..BASE..CND¥59,300198908-199009

main82111-16831iEL31..STD..CND¥59,300198908-199009

W(RR WIPER)

main82111-16841iEL31..5DS¥59,300198908-199009

W(*CRC)

82121WIRE, ENGINE

main82121-16273iEL31..MTM..USA¥59,200198808-198908

main82121-16274iEL31..MTM..USA¥59,300198908-199009

main82121-16283iEL31..3FC..USA¥59,200198808-198908

main82121-16284iEL31..3FC..USA..CBR¥59,300198908-199009

main82121-16323iEL31..MTM..CND¥59,200198808-198908

COLD SPEC

main82121-16324iEL31..MTM..USA¥59,300198908-199009

COLD SPEC

main82121-16333iEL31..3FC..USA¥59,200198808-198908

COLD SPEC

main82121-16334iEL31..3FC..USA..CBR¥59,300198908-199009

COLD SPEC

main82121-16400iEL31..MTM..USA¥59,200198808-198908

CALIFORNIA SPEC

main82121-16401iEL31..MTM..USA¥59,300198908-199009

CALIFOLNIA SPEC

main82121-16410iEL31..3FC..USA¥59,200198808-198908

CALIFORNIA SPEC

main82121-16441iEL31..EFI¥70,900198908-199009

main82121-16480iEL31..MTM..CND¥59,300198908-199009

main82121-16490iEL31..3FC..CND¥59,300198908-199009

82131WIRE, COWL

main82131-1G320iEL31..(BASE,STD)..USA¥51,800198808-198908

main82131-1G330iEL31..CND;EL31..DX..USA¥51,800198808-198908

W(REAR WINDOW DEFFOGGER)

main82131-1G340iEL31..(3DS,5DS)..(BASE,STD)..USA¥58,000198808-198908

W(RR WIPER) OR W(RR WIPER & *RWD)

main82131-1G340iEL31..(3DS,5DS)..CND;EL31..(3DS,5DS)..DX..USA¥58,000198808-198908

W(RR WIPER)

main82131-1G350iEL31..2DS..DX¥58,000198808-198908

W(*CRC)

main82131-1G350iEL31..2DS..DX¥58,000198808-198908

W(*CRC) OR W(*CRC & RR WIPER)

main82131-1G360iEL31..2DS..STD¥58,000198808-198908

W(ANTI-THEFT DEVICE)

main82131-1G432iEL31..(BASE,STD)..USA..CBR¥66,800198908-199002

main82131-1G442iEL31..DX..USA..CBR¥66,800198908-199002

W(REAR WINDOW DEFFOGGER)

main82131-1G452iEL31..3DS..USA..CBR¥80,300198908-199009

W(REAR WIPER) OR W(RR WIPER & *RWD)

main82131-1G472iEL31..EFI¥85,100198908-199009

main82131-1G482iEL31..2DS..STD..CBR¥58,500198908-199009

W(ANTI-THEFT DEVICE)

main82131-1G482iEL31..2DS..STD..CBR¥58,500198908-199009

ANTI-THEFT DEVICE

main82131-1G491iEL31..CND¥58,500198908-199009

main82131-1G501iEL31..(BASE,STD)..CND¥58,500198908-199009

W(RR WIPER)

main82131-1G511iEL31..5DS¥58,500198908-199009

W(*CRC)

main82131-1G790iEL31..MTM..(BASE,STD)..USA¥51,800199002-199009

main82131-1G800iEL31..3FC..(BASE,STD)..USA..CBR¥51,800199002-199009

main82131-1S030iEL31..MTM..(BASE,STD)..USA¥80,300199002-199009

main82131-1S040iEL31..3FC..(BASE,STD)..USA..CBR¥80,300199002-199009

82210CFUSIBLE LINK

main90982-08188iEL31¥710198808-199009

30A,TERM.:FEMALE,PNK

main90982-08189iEL31..CBR¥440198808-199009

40A,TERM.:FEMALE,GRN

main90982-08190iEL31¥750198808-199009

60A,TERM.:FEMALE,YEL

main90982-08203iEL31..CND¥460198912-199009

80A,TERM.:MALE,BLK

main90982-08223iEL31..CND¥710198908-199009

30A,TERM.:MALE,PNK

main90982-08253iEL31..CND¥730198908-198912

80A,TERM.:MALE,BLK

sub90982-08203¥460

main90982-08262iEL31..CND¥740198908-199009

L=110

82345DIODE

main82345-12050iEL31..2DS..DX¥790198808-199009

82625TERMINAL, FUSIBLE LINK

main82625-12030iEL31..CND¥1,180198908-199009

82671BLOCK, JUNCTION

main82660-12130iEL31¥13,200198808-199009

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22280iEL31¥310198808-199009

82823CAP, TERMINAL, NO.1

main82823-20030iEL31..USA¥670198808-199009

ST

main82823-22050iEL31¥390198808-199009

ALTERNATOR

8401

9010510122

main90105-10122¥160

9011906005

main90119-06005¥80

9011906053

main90119-06053¥80

9017908146

main90179-08146¥180

9161140812

main91611-40812¥110

9165140816

main91651-40816¥80

9165640616

main91656-40616¥100

19 parts on this diagram · 5 diagrams in section
