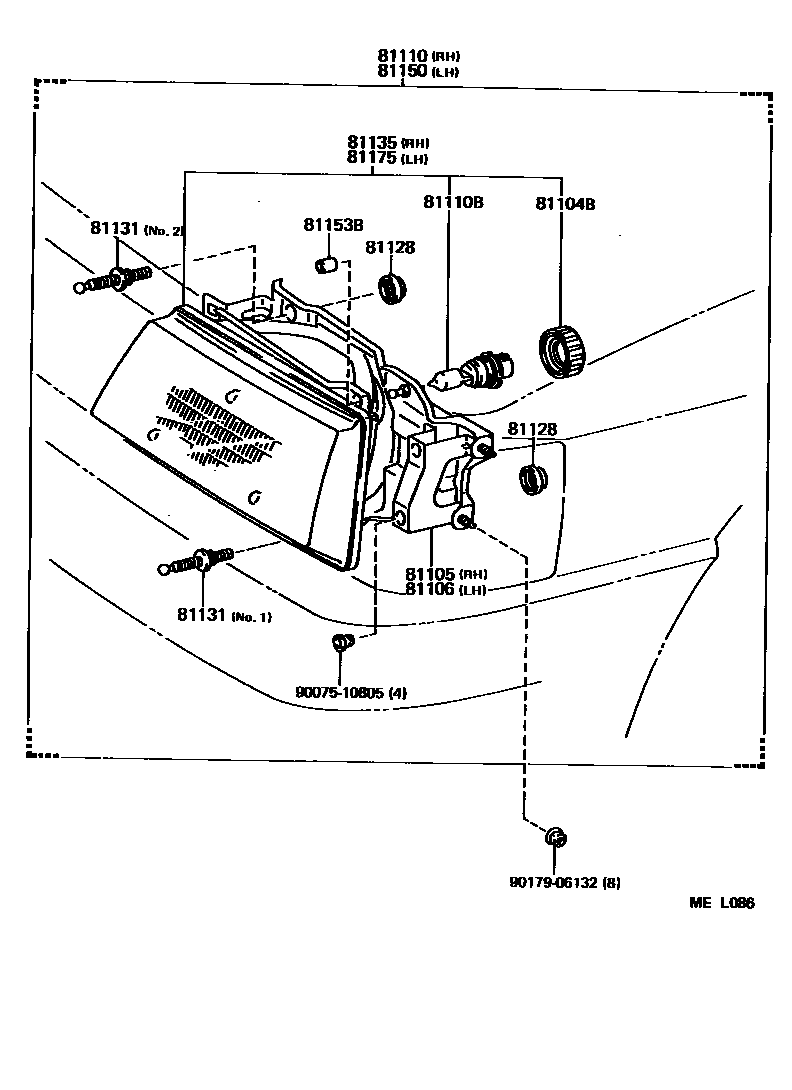

HEADLAMP
81104BLOCKING CAP, HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 65/45W,*HAL,*WH
81128NUT, HEADLAMP
81131SCREW, HEADLAMP ADJUSTING
NO.1
NO.2
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81153BBEARING, HEADLAMP
81175UNIT ASSY, HEADLAMP, LH
9007510805
main90075-10805
9017906132
main90179-06132
13 parts on this diagram · 2 diagrams in section
