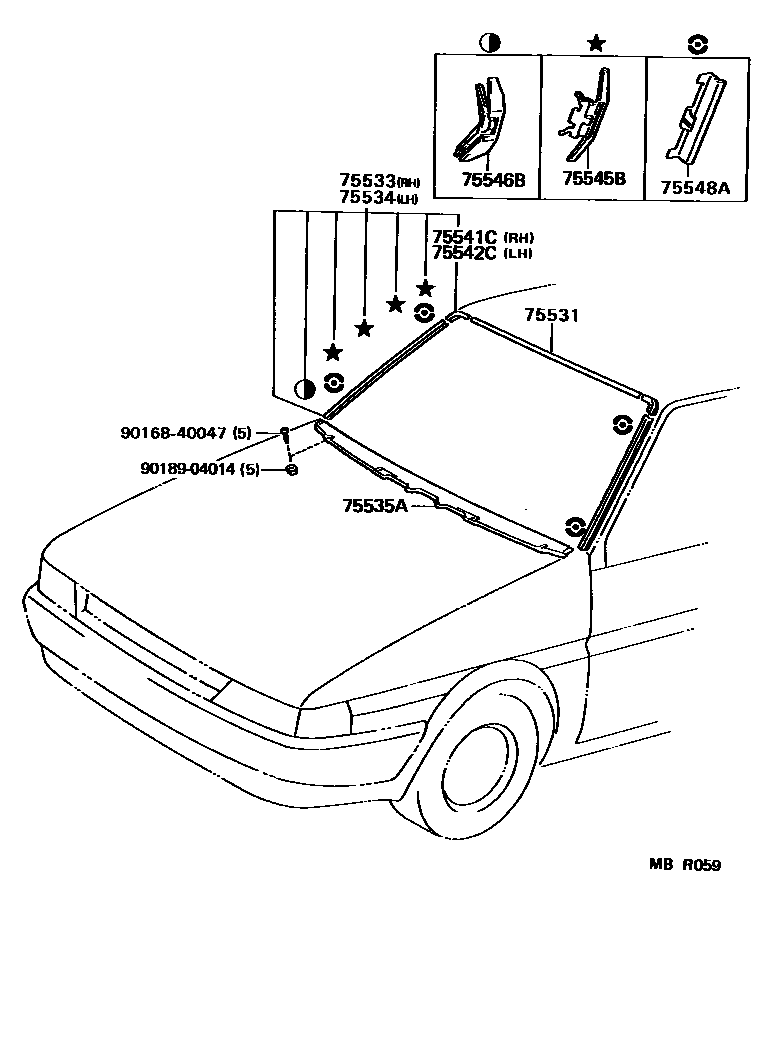

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-16060iEL31198808-199009

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-16040iEL31..3DS,5DS198808-199009

main76503-16010iEL31..2DS198808-199009

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-16040iEL31..3DS,5DS198808-199009

main76504-16010iEL31..2DS198808-199009

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-16040iEL31198808-199009

75541CCOVER, WINDSHIELD MOULDING JOINT, UPPER RH

main75541-16040iEL31..3DS,5DS198808-199009

75542CCOVER, WINDSHIELD MOULDING JOINT, UPPER LH

main75542-16040iEL31..3DS,5DS198808-199009

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-16030iEL31198808-199009

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-16030iEL31..3DS,5DS198808-199009

RH

main75546-16040iEL31..2DS198808-199009

RH

main75547-16030iEL31..3DS,5DS198808-199009

LH

main75547-16040iEL31..2DS198808-199009

LH

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-16030iEL31198808-199009

9016840047

main90168-40047

9018904014

main90189-04014

11 parts on this diagram · 2 diagrams in section
