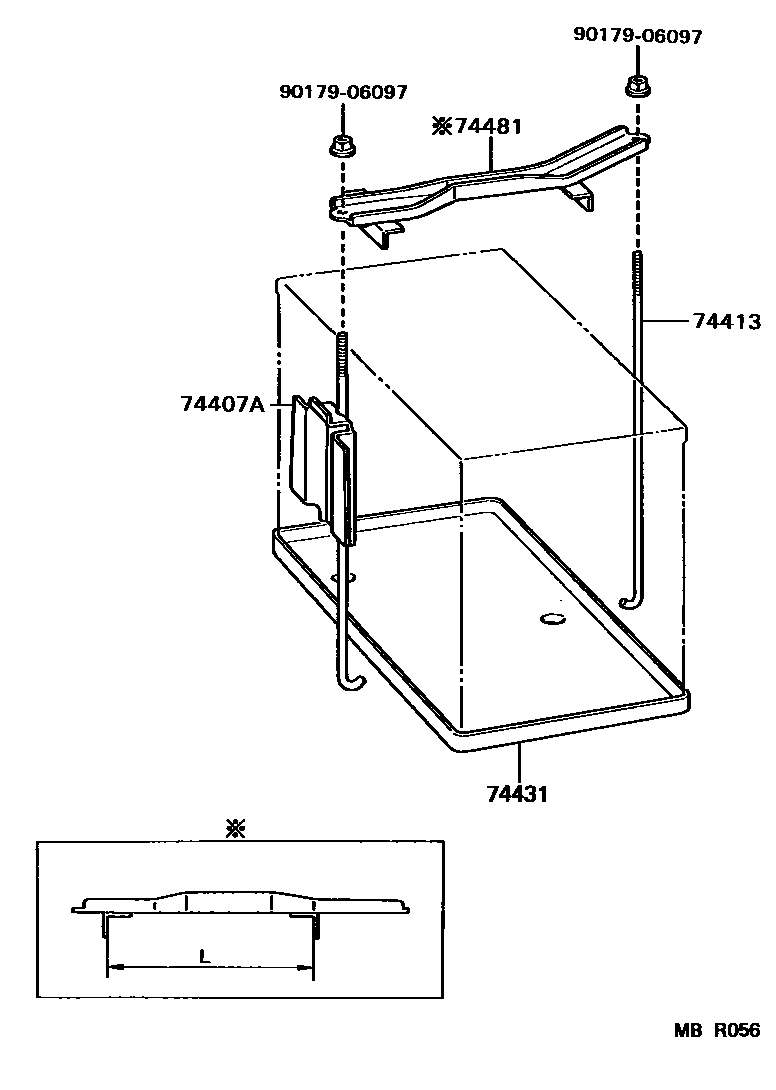

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-16020iEL31198808-199009

74413BOLT, BATTERY CLAMP

main74451-14010iEL31..USA198808-199009

W(BATTERY=32C24L)

main74451-16010iEL31198808-199009

74431TRAY, BATTERY

main74431-14020iEL31..USA198808-199009

W(BATTERY=32C24L)

main74431-14030iEL31198808-199009

sub74431-52040

74481CLAMP, BATTERY HOLD DOWN

main74404-16070iEL31..USA198808-199009

W(BATTERY=32C24L)

main74404-16080iEL31198808-199009

9017906097

main90179-06097

5 parts on this diagram · 1 diagram in section
