PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

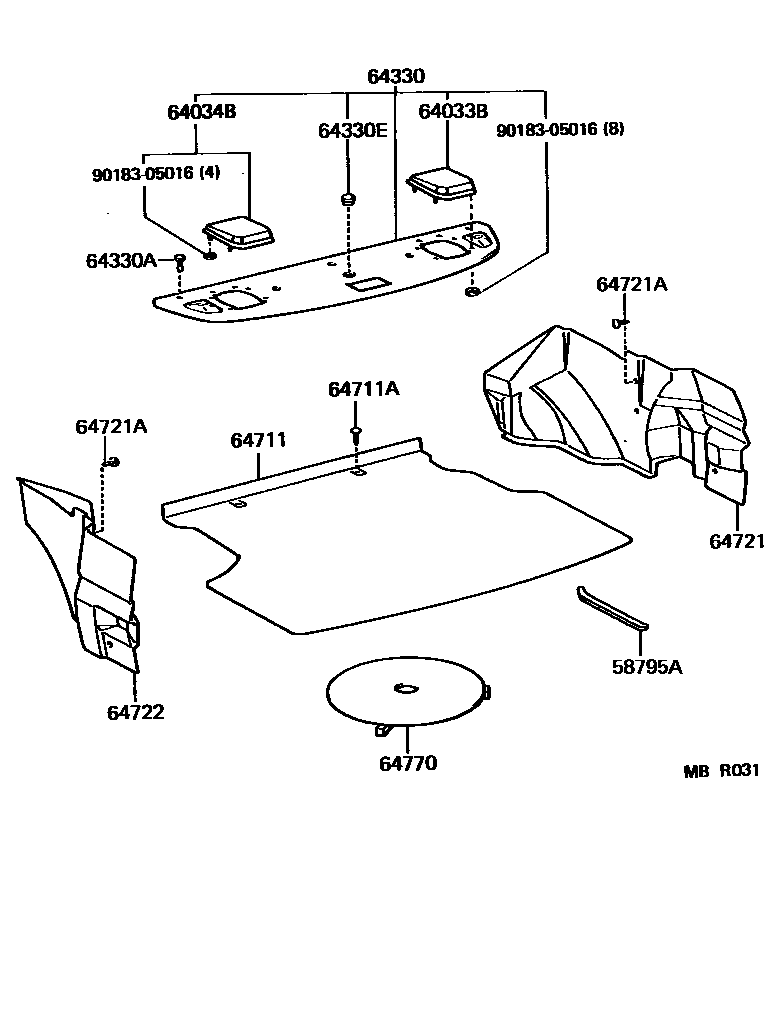

Parts diagram
58795ATRIM, JACK HOUSE OPENING
main58795-16030-01i198808-199009
BLACK,TRIM2#,4#,8#
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-16011-01i198808-199009
BLACK,TRIM2#,8#
main64033-16011-01i198808-199009
BLACK,TRIM2#
main64033-16011-04i198808-199009
BLUE,TRIM2#,8#
main64033-16011-04i198808-199009
BLUE,TRIM8#
main64033-16011-06i198808-199009
BROWN,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-16011-01i198808-199009
BLACK,TRIM2#,8#
main64033-16011-01i198808-199009
BLACK,TRIM2#
main64033-16011-04i198808-199009
BLUE,TRIM2#,8#
main64033-16011-04i198808-199009
BLUE,TRIM8#
main64033-16011-06i198808-199009
BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-16220-01i198808-199009
BLACK,TRIM2#
sub64330-16220
main64330-16220-04i198808-199009
BLUE,TRIM8#
sub64330-16220
main64330-16220-06i198808-199009
BROWN,TRIM4#
sub64330-16220
main64330-16230-01i198808-199009
W(4 SPEAKER),BLACK,TRIM2#
sub64330-16230
main64330-16230-04i198808-199009
W(4 SPEAKER),BLUE,TRIM8#
sub64330-16230
main64330-16230-06i198808-199009
W(4 SPEAKER),BROWN,TRIM4#
sub64330-16230
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08046-11i198808-199009
BLACK,TRIM2#
sub90467-08046
sub90467-08037
main90467-08046-14i198808-199009
BLUE,TRIM8#
sub90467-08046
sub90467-08037
main90467-08046-E0i198808-199009
BROWN,TRIM4#
sub90467-08046
sub90467-08037
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-01i198808-199009
BLACK,TRIM2#
sub90950-01436
sub64353-50010
main90950-01436-14i198808-199009
DEEP BLUE,TRIM8#
sub90950-01436
sub64353-50010
main90950-01436-16i198808-198909
BROWN,TRIM4#
sub90950-01436
sub64353-50010
main90950-01436-E1i198909-199009
BROWN,TRIM4#
sub90950-01436
sub64353-50010
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-16040-03i198808-199009
GRAY,TRIM2#,4#,8#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
main90467-06037-01i198808-199009
BLACK,TRIM2#
sub90467-06037
main90467-06037-14i198808-199009
BLUE,TRIM8#
sub90467-06037
main90467-06037-26i198808-199009
BROWN,TRIM4#
sub90467-06037
main90467-06037-33i198808-199009
GRAY,TRIM2#,4#,8#
sub90467-06037
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-16020-03i198808-199009
GRAY,TRIM2#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-B0i198808-199009
LIGHT GRAY,TRIM2#,4#,8#
sub90467-07042
sub90467-06175
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-16020-03i198808-199009
GRAY,TRIM2#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-16100i198808-199009
9018305016
main90183-05016

13 parts on this diagram · 1 diagram in section
