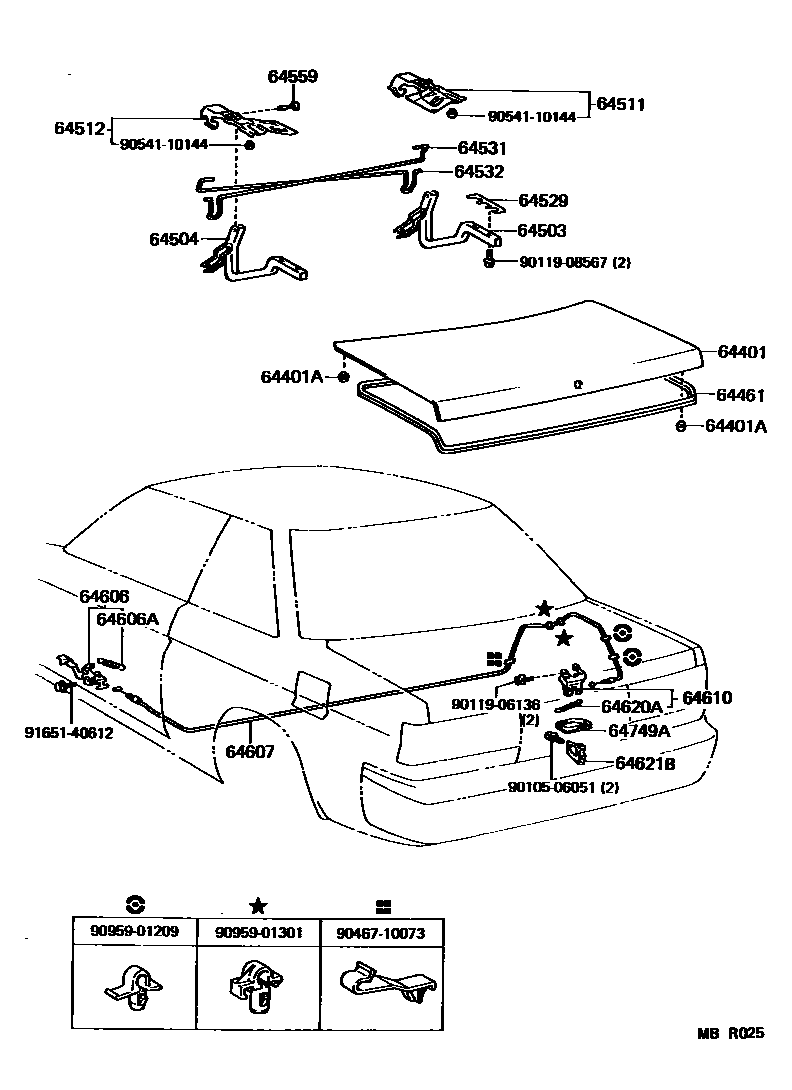

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
REAR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
W(BACK DOOR & TRUNK OPENER)
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
W(BACK DOOR & TRUNK OPENER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
W(BACK DOOR & TRUNK OPENER)
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W(BACK DOOR & TRUNK OPENER)
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
sub64621-12070
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
9010506051
main90105-06051
9011906136
main90119-06136
9011908567
main90119-08567
9046710073
main90467-10073
9054110144
main90541-10144
9095901209
main90959-01209
9095901301
main90959-01301
9165140612
main91651-40612
26 parts on this diagram · 1 diagram in section
