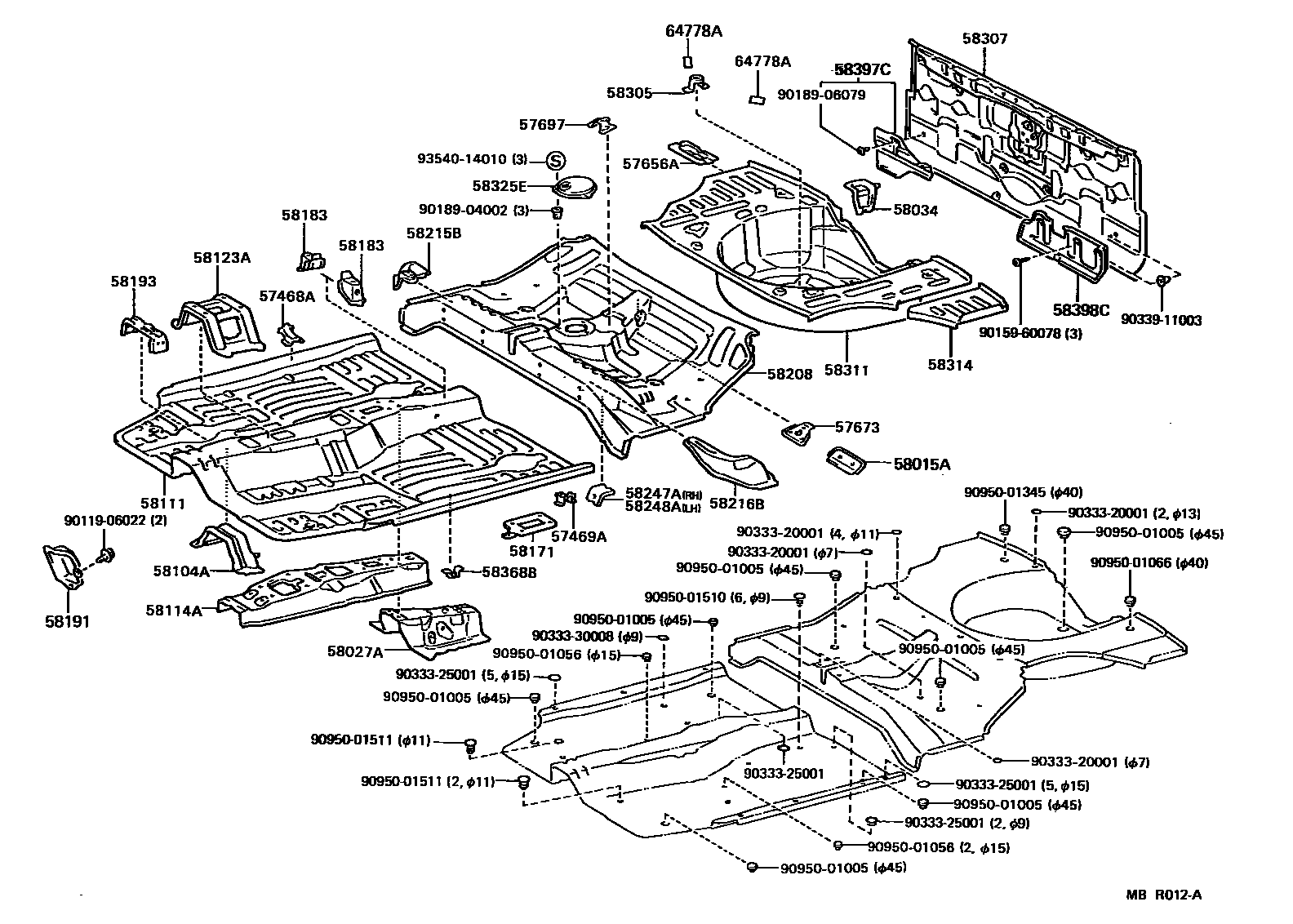

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-16030iEL31198808-199009

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-16030iEL31198808-199009

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-16010iEL31198808-199009

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-16030iEL31..(3DS,5DS)..DX198808-199009

57697RETAINER, REAR SEAT CUSHION

main57697-16010iEL31..(3DS,5DS)..DX198808-199009

W(SPLIT REAR SEAT)

main57697-16010iEL31198808-199009

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-16040iEL31198808-199009

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16020iEL31198808-198908

sub58027-16021

sub90333-30004

main58027-16021iEL31198908-199009

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-16010iEL31198808-199009

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10030iEL31198808-199009

58111PAN, FRONT FLOOR

main58111-16060iEL31198808-198908

sub58111-16061

sub90333-30004

main58111-16061iEL31198908-199009

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-10030iEL31198808-199009

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10030iEL31198808-199009

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-16020iEL31198808-199009

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-16010iEL31198808-198908

RH

main58183-16020iEL31198908-199009

RH

main58184-16020iEL31198808-198908

LH

main58184-16030iEL31198908-199009

LH

58191FOOTREST, FRONT FLOOR

main58191-16050iEL31198808-199009

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16010iEL31198808-199009

58208PAN, CENTER FLOOR

main58211-16060iEL31..2DS198808-199009

main58211-16900iEL31..3DS,5DS198808-199009

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16020iEL31198808-199009

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16020iEL31198808-199009

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-10010iEL31..(3DS,5DS)..DX198808-199009

W(SPLIT REAR SEAT)

main58247-10010iEL31198808-199009

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-10010iEL31..(3DS,5DS)..DX198808-199009

W(SPLIT REAR SEAT)

main58247-10010iEL31198808-199009

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL31198808-199009

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16280iEL31..3DS,5DS198808-199009

main58307-16310iEL31..2DS198808-199009

58311PAN, REAR FLOOR

main58311-16110iEL31..3DS,5DS198808-199009

main58311-16120iEL31..2DS198808-199009

58314PANEL, REAR FLOOR SIDE, LH

main58314-16030iEL31..3DS,5DS198808-199009

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-16020iEL31..CBR198808-199009

main58325-16040iEL31..EFI198908-199009

58368BBRACKET, FUEL TUBE, NO.2

main58368-10010iEL31198808-199009

58397CCOVER, BODY LOWER BACK, RH

main58397-16010iEL31..3DS,5DS198808-199009

main58397-16020iEL31..2DS198808-199009

58398CCOVER, BODY LOWER BACK, LH

main58398-16010iEL31..3DS,5DS198808-199009

main58398-16020iEL31..2DS198808-199009

64778APROTECTOR, SPARE WHEEL

main64778-16020iEL31198808-199009

9011906022

main90119-06022

9015960078

main90159-60078

9018904002

main90189-04002

9018906079

main90189-06079

9033320001

main90333-20001

9033325001

main90333-25001

9033330008

main90333-30008

9033911003

main90339-11003

9095001005

main90950-01005

9095001056

main90950-01056

9095001066

main90950-01066

9095001345

main90950-01345

9095001510

main90950-01510

9095001511

main90950-01511

9354014010

main93540-14010

45 parts on this diagram · 2 diagrams in section
