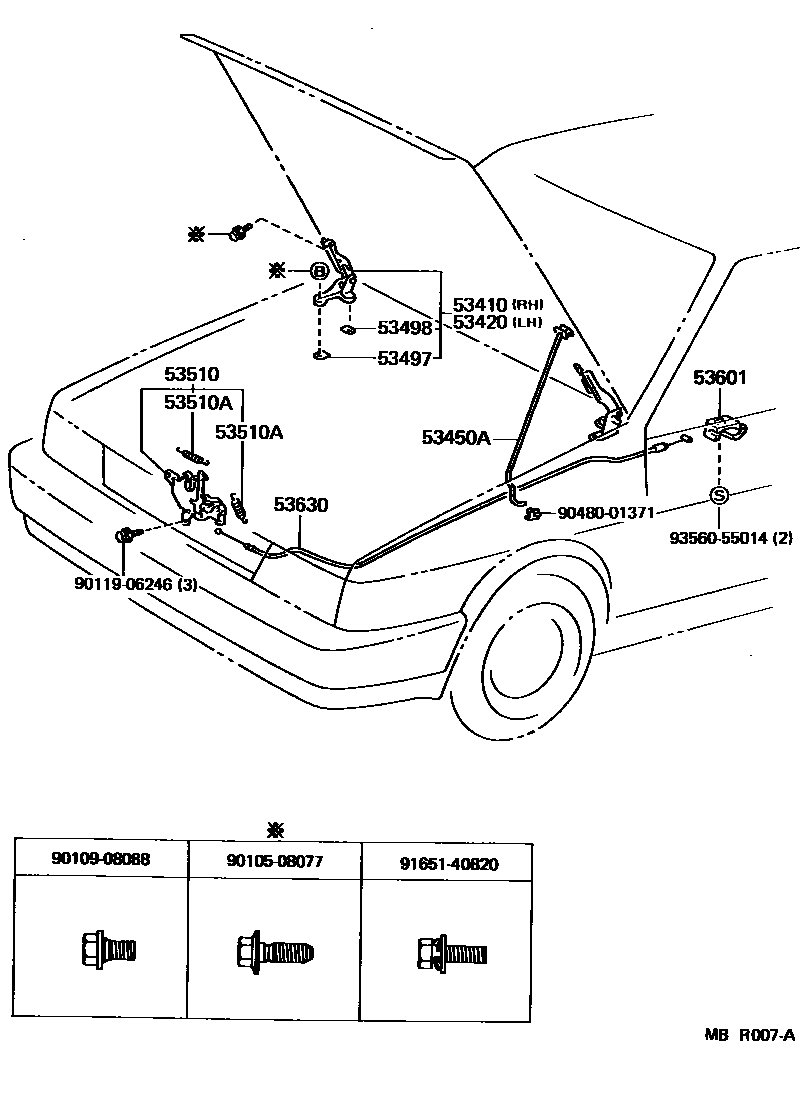

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16041iEL31198808-199009

53420HINGE ASSY, HOOD, LH

main53420-16021iEL31198808-199009

53450ASUPPORT ASSY, HOOD, LH

main53440-16020iEL31198808-199009

53497PAD, HOOD HINGE, NO.1

main53497-14071iEL31198808-199009

53498PAD, HOOD HINGE, NO.2

main53498-14011iEL31198808-199009

53510LOCK ASSY, HOOD

main53510-16100iEL31..EZ198808-199009

main53510-16101iEL31..TER198808-199009

main53510-16111iEL31..TER..(2DS,3DS)..USA..CBR198808-199009

W(ANTI-THEFT DEVICE)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iEL31198808-199009

WD=0.9,CW=26.5,WD=0.9

main90506-20008iEL31198808-199009

WD=2.0,CW=17,CW=17.0,WD=2.0

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-01iEL31198808-199009

NEW BLACK,TRIM2#

sub53601-10020

sub53601-20060

main53601-10020-14iEL31..DX,STD198808-199009

BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-26iEL31..DX,STD198808-198908

BROWN,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-E2iEL31..DX,STD198908-199009

BROWN,TRIM4#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16160iEL31198808-199009

9010508077

main90105-08077

9010908088

main90109-08088

9011906246

main90119-06246

9048001371

main90480-01371

9165140820

main91651-40820

9356055014

main93560-55014

15 parts on this diagram · 1 diagram in section
