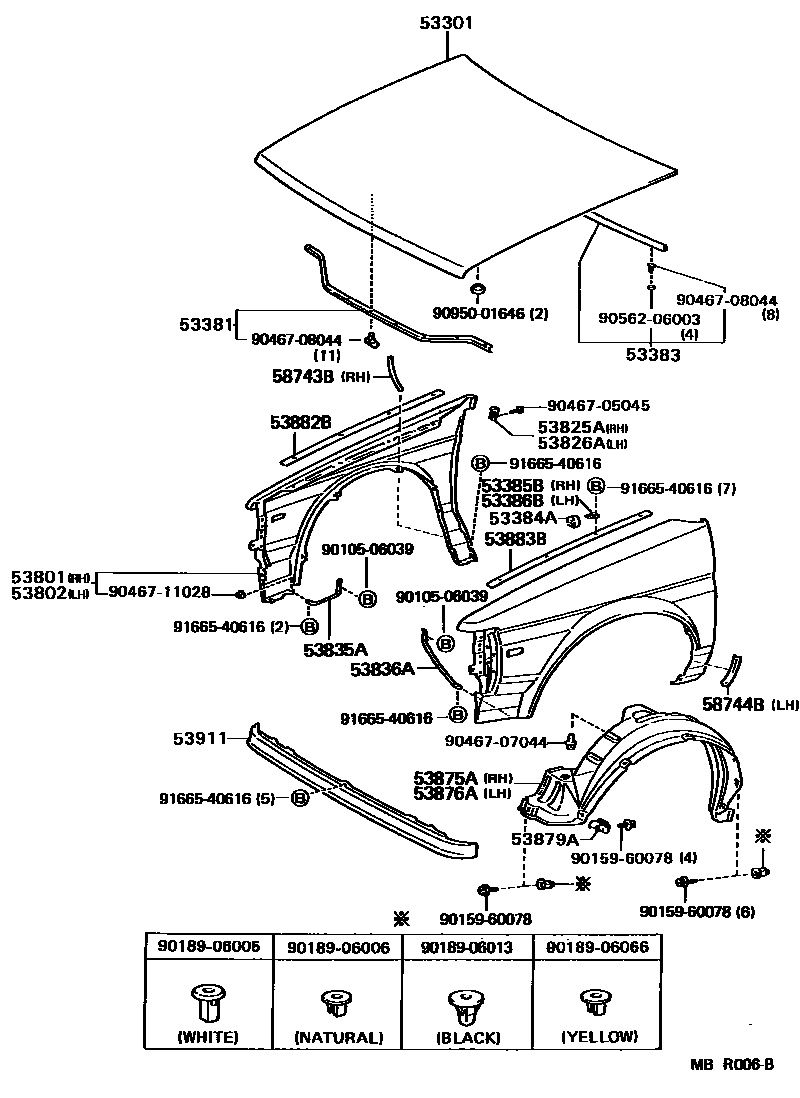

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53383SEAL, HOOD TO COWL TOP
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53911PANEL, FRONT VALANCE
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9010506039
main90105-06039
9015960078
main90159-60078
9018906005
main90189-06005
9018906006
main90189-06006
9018906013
main90189-06013
9018906066
main90189-06066
9046705045
main90467-05045
9046707044
main90467-07044
9046708044
main90467-08044
9046711028
main90467-11028
9056206003
main90562-06003
9095001646
main90950-01646
9166540616
main91665-40616
33 parts on this diagram · 1 diagram in section
