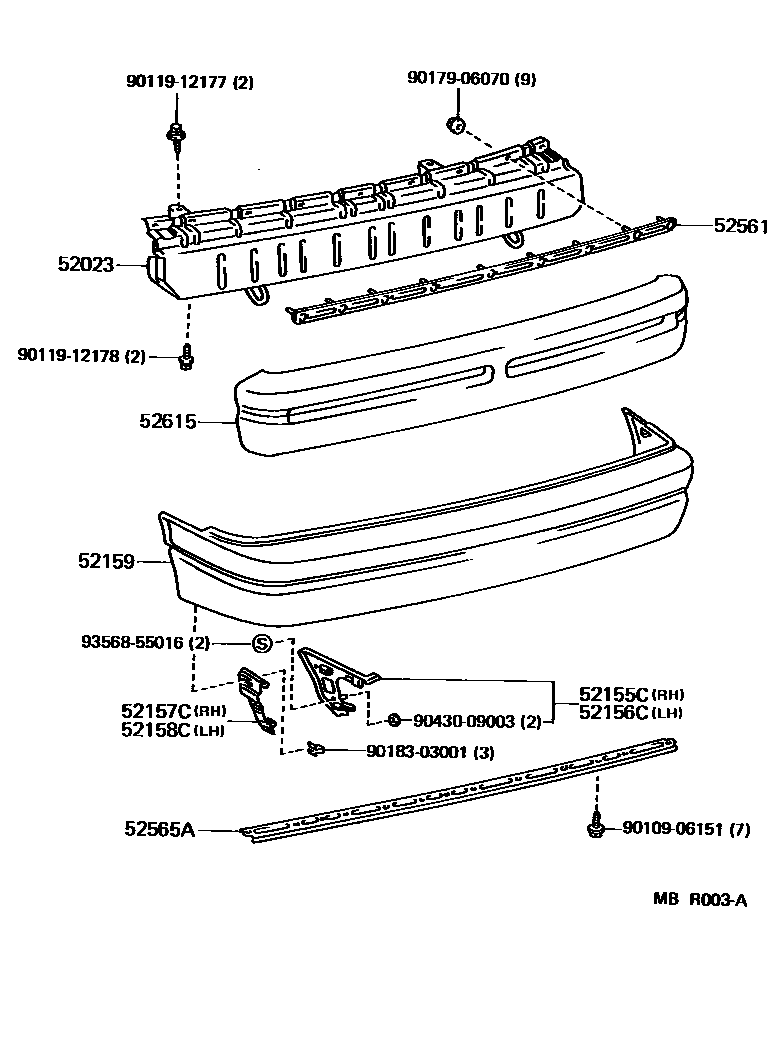

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-16040iEL31..3DS,5DS¥30,500198808-199009

main52023-16080iEL31..2DS¥30,500198808-199009

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-16091iEL31..3DS,5DS¥1,050198808-199009

main52155-16100iEL31..2DS¥660198808-199009

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-16100iEL31..2DS¥660198808-199009

main52156-16091iEL31..3DS,5DS¥1,050198808-199009

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-16071iEL31..3DS,5DS¥1,310198808-199009

main52157-16080iEL31..2DS¥1,050198808-199009

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-16080iEL31..2DS¥1,050198808-199009

main52158-16071iEL31..3DS,5DS¥1,310198808-199009

52159COVER, REAR BUMPER

main52159-16220iEL31..3DS,5DS¥38,400198808-199009

main52159-16250iEL31..2DS¥42,100198808-199009

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12050iEL31¥2,730198808-199009

52565ARETAINER, REAR BUMPER, LOWER

main52565-12030iEL31¥2,910198808-199009

52615ABSORBER, REAR BUMPER ENERGY

main52615-16050iEL31..3DS,5DS¥16,800198808-199009

main52615-16060iEL31..2DS¥16,800198808-199009

9010906151

main90109-06151¥180

9011912177

main90119-12177¥270

9011912178

main90119-12178¥310

9017906070

main90179-06070¥180

9018303001

main90183-03001¥170

9043009003

main90430-09003¥60

9356855016

main93568-55016¥70

16 parts on this diagram · 2 diagrams in section
