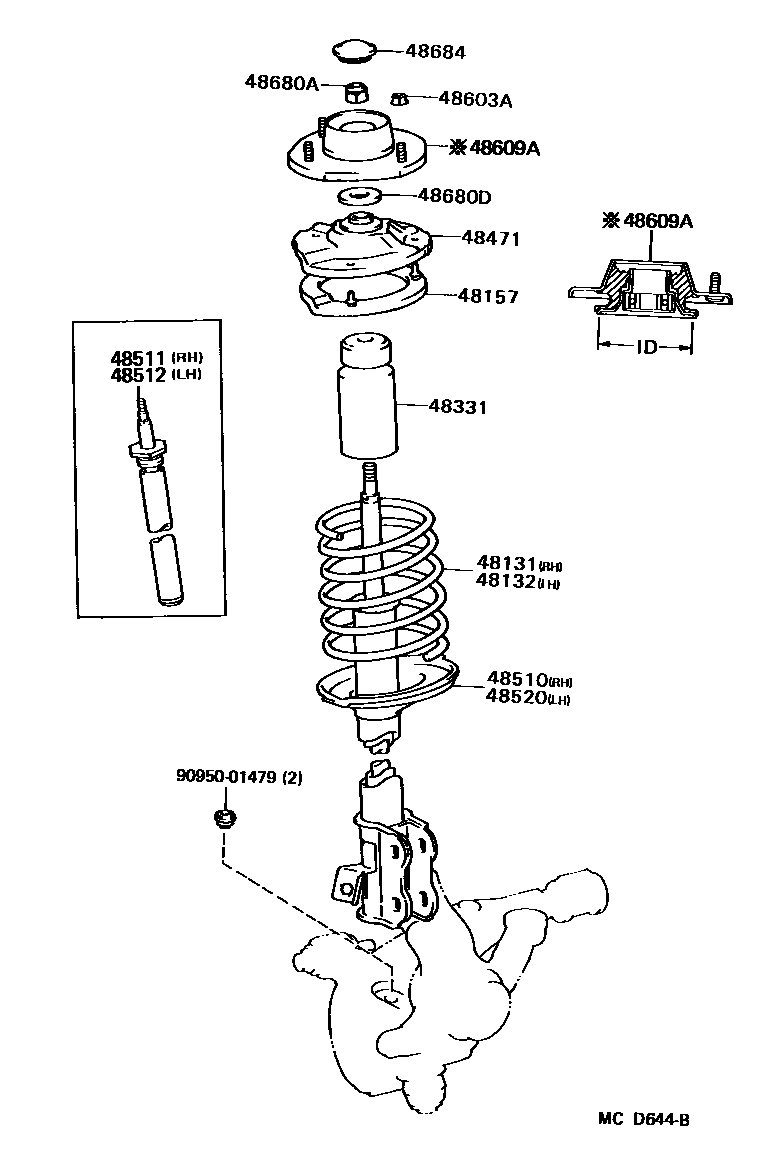

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-16391iEL31..3FC198808-199009

sub48131-16440

main48131-16820iEL31..MTM198808-199009

48132SPRING, FRONT COIL, LH

main48131-16391iEL31..3FC198808-199009

sub48131-16440

main48131-16820iEL31..MTM198808-199009

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16030iEL31198808-199009

48331BUMPER, FRONT SPRING, NO.1

main48331-10070iEL31198808-199009

48471SEAT, FRONT SPRING, UPPER

main48044-10020iEL31198808-199009

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16191iEL31198808-199009

sub48510-16281

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-16030iEL31198808-199009

sub48511-16020

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-16030iEL31198808-199009

sub48511-16020

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-16031iEL31198808-199009

sub48520-16061

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08090iEL31198808-199009

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-16090iEL31198808-199009

main48609-16100iEL31198808-199008

sub48609-16090

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iEL31198808-199009

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEL31198808-199009

48684COVER, BEARING DUST

main48684-10010iEL31198808-199009

9095001479

main90950-01479

15 parts on this diagram · 1 diagram in section
