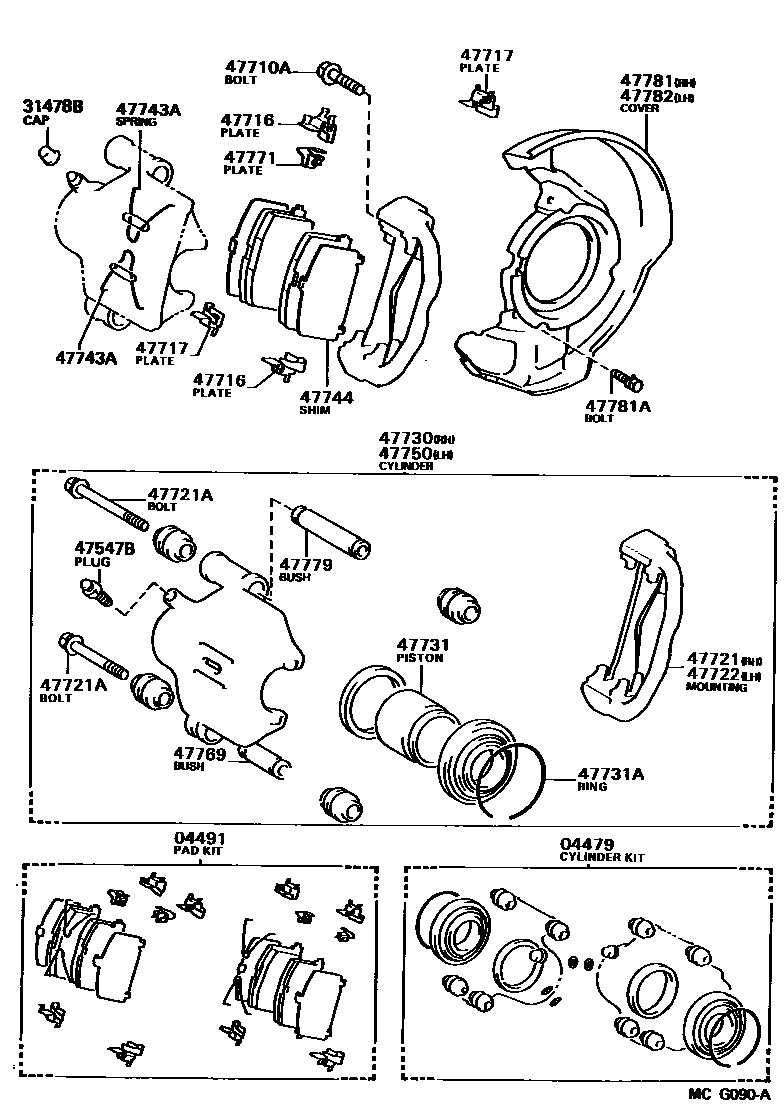

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16021iEL31¥3,010198808-199009

04491PAD KIT, DISC BRAKE, FRONT

main04491-16081iEL31..USA¥10,800198808-199009

sub04465-16031¥9,900

main04491-16131iEL31..CND¥9,700198808-198811

sub04491-16132¥9,700

main04491-16132iEL31..CND¥9,700198811-199009

sub04465-17070¥10,500

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEL31¥160198808-199009

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iEL31¥200198808-199009

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iEL31¥230198808-199009

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iEL31¥600198808-198811

sub47716-32031¥390

main47716-32031iEL31¥390198811-199009

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iEL31¥600198808-198811

sub47717-32031¥390

main47717-32031iEL31¥390198811-199009

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-16010iEL31¥6,600198808-199009

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iEL31¥550198808-199009

*9-1.25PX71-25

main90119-09004iEL31¥550198808-199009

*9-1.25PX91-25

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-16010iEL31¥6,600198808-199009

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16050iEL31¥43,000198808-199009

47731PISTON, FRONT DISC BRAKE

main47731-16020iEL31¥3,000198808-199009

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEL31¥120198808-199009

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-16010iEL31..USA¥320198808-199009

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010iEL31..CND¥280198808-199009

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16050iEL31¥43,000198808-199009

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEL31¥590198808-199009

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iEL31¥250198808-199009

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iEL31¥590198808-199009

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16050iEL31¥1,730198808-199009

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iEL31¥90198808-199009

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16050iEL31¥1,730198808-199009

22 parts on this diagram · 3 diagrams in section
