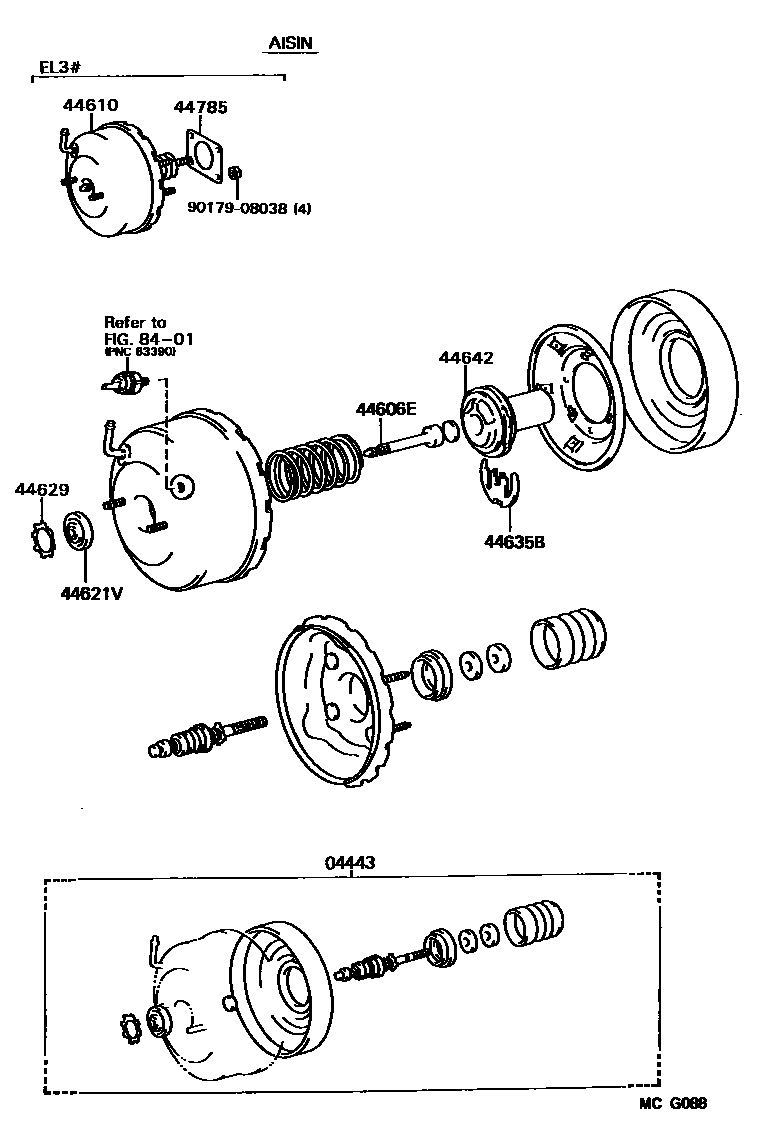

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-16120iEL31..5DS..DX;EL31..5DS..STD..USA;EL31..(2DS,3DS)..CBR¥10,500198808-199009

main04443-16140iEL31..5DS..DX;EL31..5DS..STD..USA;EL31..(2DS,3DS)..CBR¥9,300198808-199009

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iEL31¥2,660198808-199009

44610BOOSTER ASSY, BRAKE

main44610-16160iEL31¥38,700198808-199003

sub44610-16170¥38,700

main44610-16170iEL31¥38,700199003-199009

44621VSEAL, BOOSTER BODY

main44621-28120iEL31¥590198808-199009

44629RING, CIRCULAR INTERNAL

main44628-28120iEL31¥390198808-199009

44635BKEY, VALVE STOPPER

main44635-16160iEL31¥400198808-199009

44642PISTON, BRAKE BOOSTER

main44642-16160iEL31¥5,500198808-199009

44785GASKET, BRAKE BOOSTER

main44785-16010iEL31¥180198808-199009

8401

9017908038

main90179-08038¥130

10 parts on this diagram · 2 diagrams in section
