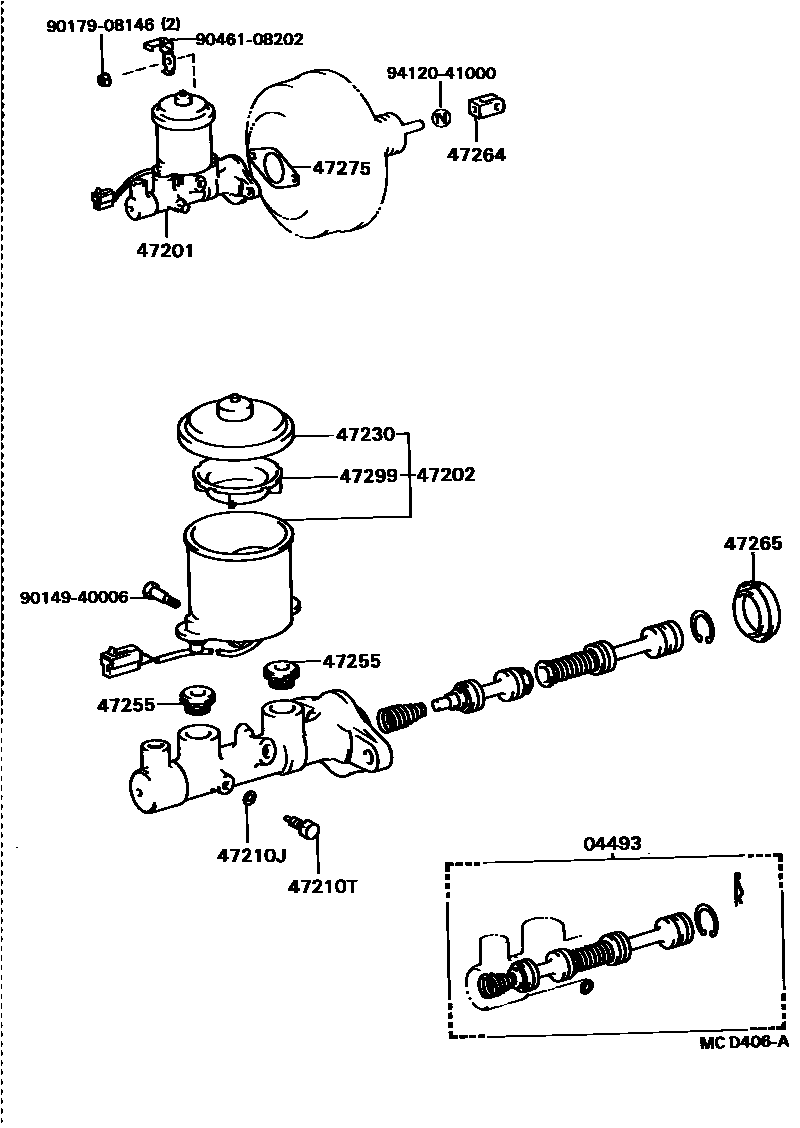

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-16030iEL31198808-199009

sub04493-12180

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16140iEL31198808-199009

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-16020iEL31198808-199009

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iEL31198808-199009

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL31198808-199009

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL31198808-199009

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL31198808-199009

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20040iEL31198808-199009

47265BOOT, MASTER CYLINDER

main47265-20050iEL31198808-199009

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iEL31198808-199009

sub47275-26010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL31198808-199009

9014940006

main90149-40006

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
