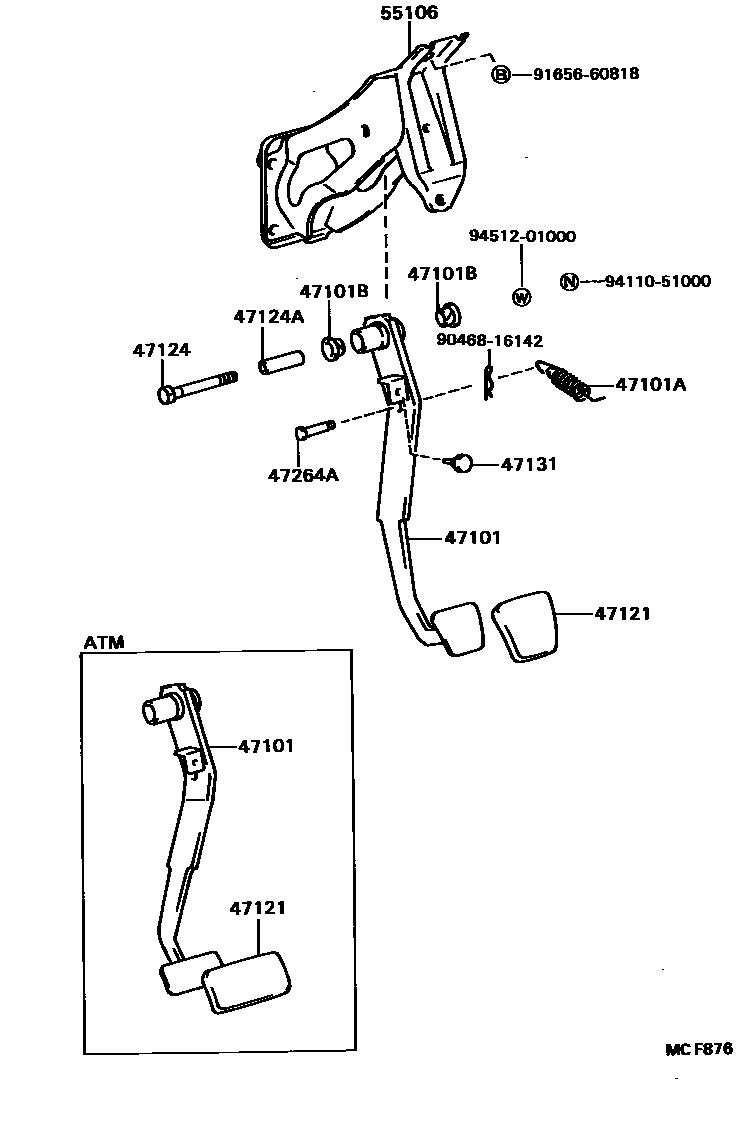

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-16090iEL31..MTM198808-199009

main47101-16100iEL31..3FC198808-199009

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iEL31199005-199009

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iEL31198808-199009

47121PAD, BRAKE PEDAL

main31321-14020iEL31..MTM198808-199009

main47121-12020iEL31..3FC198808-199009

47124SHAFT, BRAKE PEDAL

main90101-10015iEL31198808-199009

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEL31198808-199009

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iEL31198808-199002

main90541-06036iEL31199002-199009

47264APIN(FOR PUSH ROD)

main90249-08051iEL31198808-199009

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-16120iEL31198808-199009

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
